SFV34R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

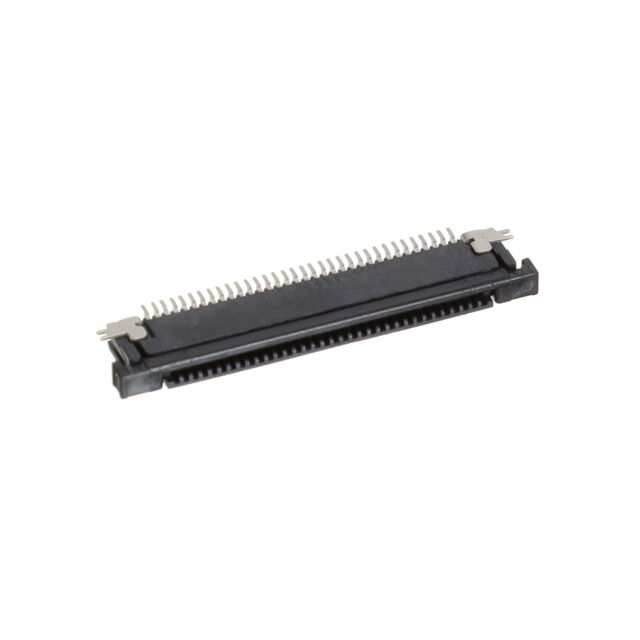

CONN FFC BOTTOM 34POS 0.5MM R/A
| Part | Current Rating (Amps) | Housing Color | Mating Cycles | Actuator Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector/Contact Type | Termination | Flat Flex Type | Material Flammability Rating | Pitch | Pitch | Voltage Rating | Actuator Material | Features | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Locking Feature | Mounting Type | Number of Positions [custom] | Cable End Type | Contact Finish | Height Above Board [z] | Height Above Board [z] | Housing Material | Contact Material | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 0.5 A | Black | 20 | Brown | -55 C | 105 ░C | Contacts Bottom | Solder | FFC FPC | UL94 V-0 | 0.02 " | 0.5 mm | 50 V | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | 0.33 mm | Slide Lock | Right Angle Surface Mount | 34 | Tapered | Gold | 0.071 in | 1.8 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | |
 Amphenol ICC (FCI) | 0.5 A | Black | 20 | Beige | -55 C | 105 ░C | Contacts Top | Solder | FFC FPC | UL94 V-0 | 0.02 " | 0.5 mm | 50 V | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Slide Lock | Right Angle Surface Mount | 34 | Tapered | Gold | 0.071 in | 1.8 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm | |||
 Amphenol ICC (FCI) | 0.5 A | Black | 20 | Black | -55 C | 105 ░C | Contacts Bottom | Solder | FFC FPC | UL94 V-0 | 0.02 " | 0.5 mm | 50 V | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder Retention Zero Insertion Force (ZIF) | Slide Lock | Right Angle Surface Mount | 34 | Straight Tapered | Gold | 0.071 in | 1.8 mm | Glass Filled Halogen Free Nylon Polyamide (PA) | Phosphor Bronze | 0.33 mm | ||
Amphenol ICC (FCI) | 0.5 A | Black | 20 | Brown | -55 C | 105 ░C | Contacts Bottom | Solder | FFC FPC | UL94 V-0 | 0.02 " | 0.5 mm | 50 V | Polyphenylene Sulfide (PPS) Glass Filled | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | 0.33 mm | Slide Lock | Right Angle Surface Mount | 34 | Straight Tapered | Tin Alloy | 0.071 in | 1.8 mm | Glass Filled Nylon Polyamide (PA) | Phosphor Bronze | |
Amphenol ICC (FCI) | 0.5 A | Black | 20 | Black | -55 C | 105 ░C | Contacts Bottom | Solder | FFC FPC | UL94 V-0 | 0.02 " | 0.5 mm | 50 V | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | 0.33 mm | Slide Lock | Right Angle Surface Mount | 34 | Straight Tapered | Gold | 0.071 in | 1.8 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | |
 Amphenol ICC (FCI) | 0.5 A | Black | 20 | Brown | -55 C | 105 ░C | Contacts Top | Solder | FFC FPC | UL94 V-0 | 0.02 " | 0.5 mm | 50 V | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.3 mm | 0.33 mm | Slide Lock | Right Angle Surface Mount | 34 | Notched | Tin | 0.071 in | 1.8 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | ||
Amphenol ICC (FCI) | 0.5 A | Black | 20 | Black | -55 C | 105 ░C | Contacts Bottom | Solder | FFC FPC | UL94 V-0 | 0.02 " | 0.5 mm | 50 V | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder Retention Zero Insertion Force (ZIF) | Slide Lock | Right Angle Surface Mount | 34 | Tapered | Tin | 0.071 in | 1.8 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm | ||
 Amphenol ICC (FCI) | 0.5 A | Black | 20 | Beige | -55 C | 105 ░C | Contacts Top | Solder | FPC | UL94 V-0 | 0.02 " | 0.5 mm | 50 V | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Slide Lock | Right Angle Surface Mount | 34 | Tapered | Gold | 0.071 in | 1.8 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm |
