MXL8-PW Series
Manufacturer: Lumileds
Beta
⌘K

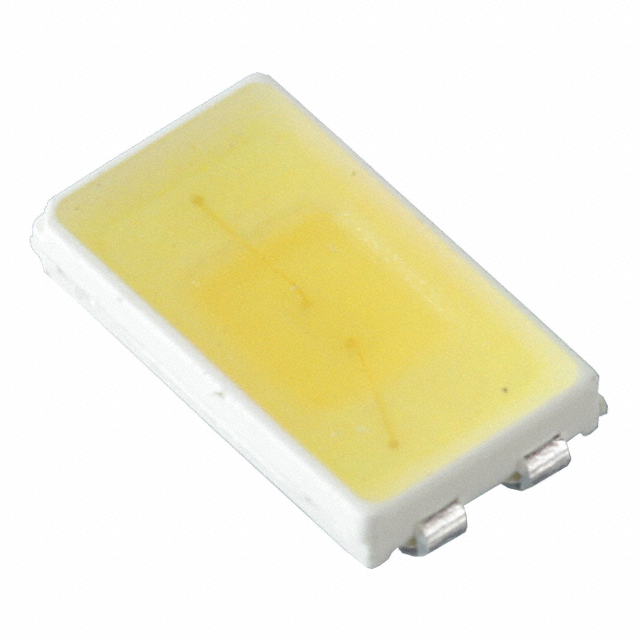

LED LUXEON COOL WHITE 5000K 4SMD
| Part | Thermal Resistance of Package | CRI (Color Rendering Index) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Test | CCT (K) | Package / Case | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Viewing Angle | Flux @ 25°C, Current - Test | Current - Max [Max] | Supplier Device Package | Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 24 °C/W | 80 | 5.6 mm | 0.118 in | 3 mm | 0.22 in | 100 mA | 5000 K | 4-SMD Flat Lead Exposed Pad | 3.1 V | 113 lm/W | 0.035 in | 0.9 mm | 120 ° | 35 lm | 150 mA | 5630 | Cool White | Surface Mount |
