RFSMA Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

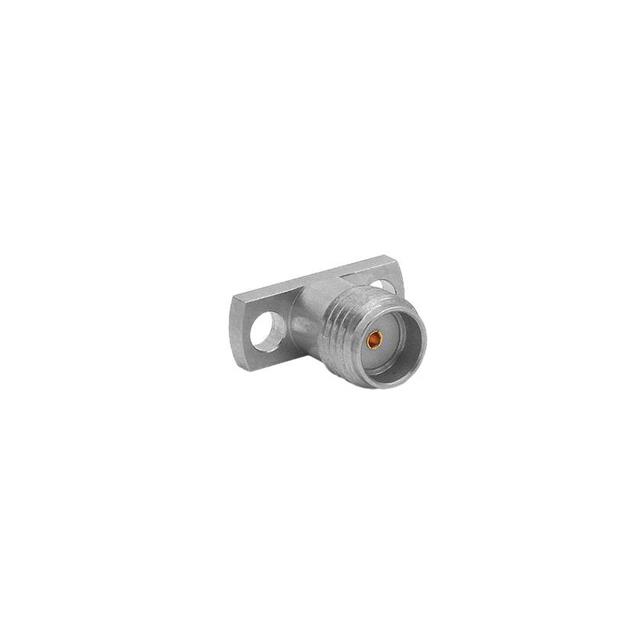

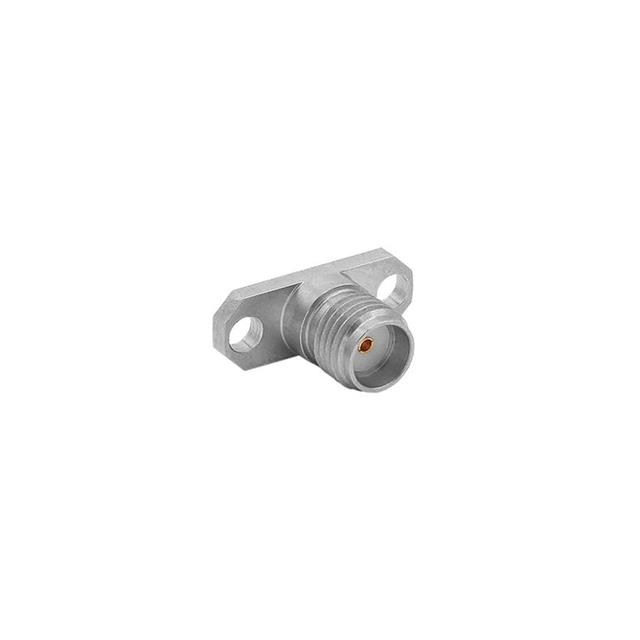

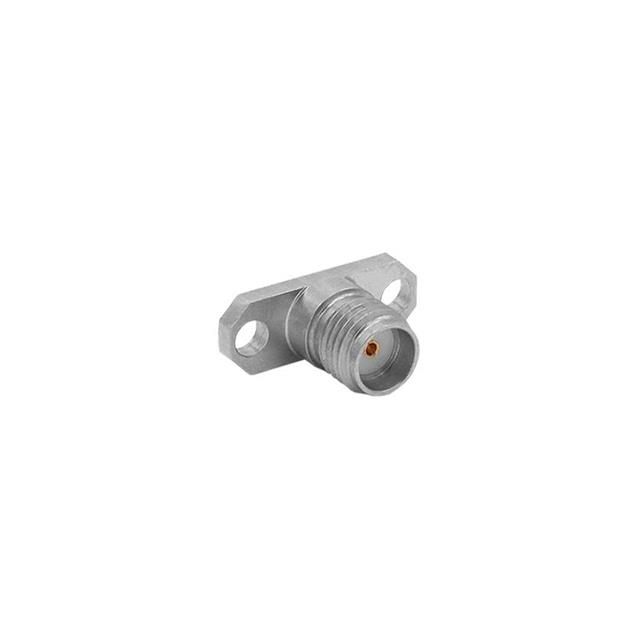

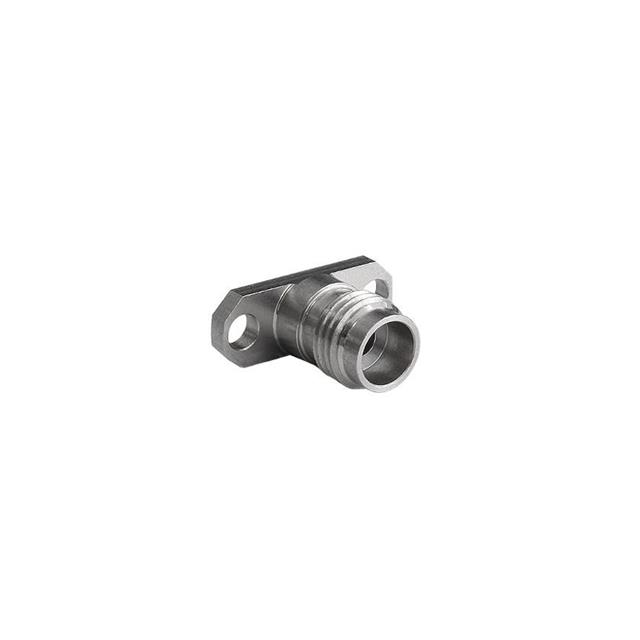

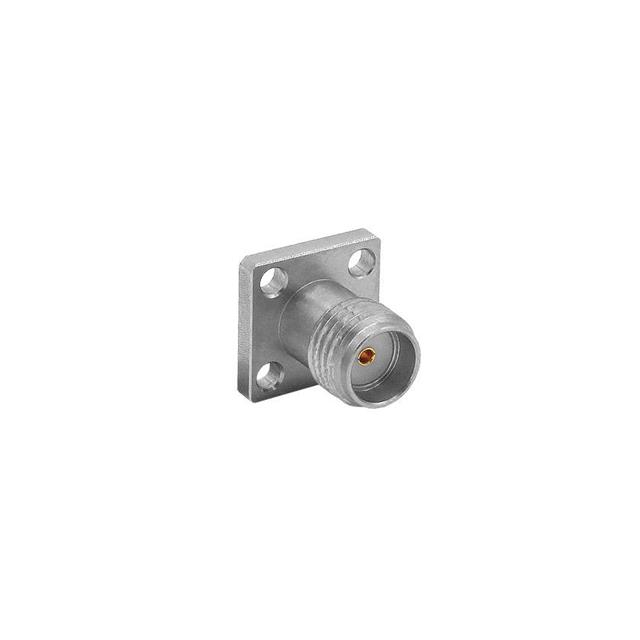

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Voltage Rating | Impedance | Number of Ports | Frequency - Max [Max] | Mounting Feature | Connector Type | Connector Style | Center Contact Material | Shield Termination | Fastening Type | Mounting Type | Housing Color | Contact Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Female Socket Jack | SMA | Beryllium Copper | Solder | Threaded | Panel Mount Through Hole | Silver | Solder | |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Plug Male Pin | SMA | Beryllium Copper | Screw | Threaded | Panel Mount | Silver | Compression | |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Plug Male Pin | SMA | Beryllium Copper | Solder | Threaded | Panel Mount Through Hole | Silver | Solder | Extended Insulation |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Plug Male Pin | SMA | Beryllium Copper | Screw | Threaded | Panel Mount | Silver | Compression | |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Female Socket Jack | SMA | Beryllium Copper | Screw | Threaded | Panel Mount | Silver | Compression | |
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Plug Male Pin | SMA | Beryllium Copper | Screw | Threaded | Panel Mount | Silver | Compression | |
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Female Socket Jack | SMA | Beryllium Copper | Solder | Threaded | Panel Mount Through Hole | Silver | Solder | Extended Insulation |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Female Socket Jack | SMA | Beryllium Copper | Screw | Threaded | Panel Mount | Silver | Compression | |
BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Plug Male Pin | SMA | Beryllium Copper | Screw | Threaded | Panel Mount | Silver | Compression | |
 BULGIN LIMITED | 500 | -65 ░C | 165 °C | Polyetherimide (PEI) | Stainless Steel | 335 V | 50 Ohms | 1 | 26.5 GHz | Flange | Female Socket Jack | SMA | Beryllium Copper | Solder | Threaded | Panel Mount Through Hole | Silver | Solder | Extended Insulation |
