6609020 Series

Catalog

LINE FILTER 250VAC 5A CHASSIS

Part	Approval Agency	Current	Inductance	Termination Style	Voltage - Rated AC	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type	Configuration

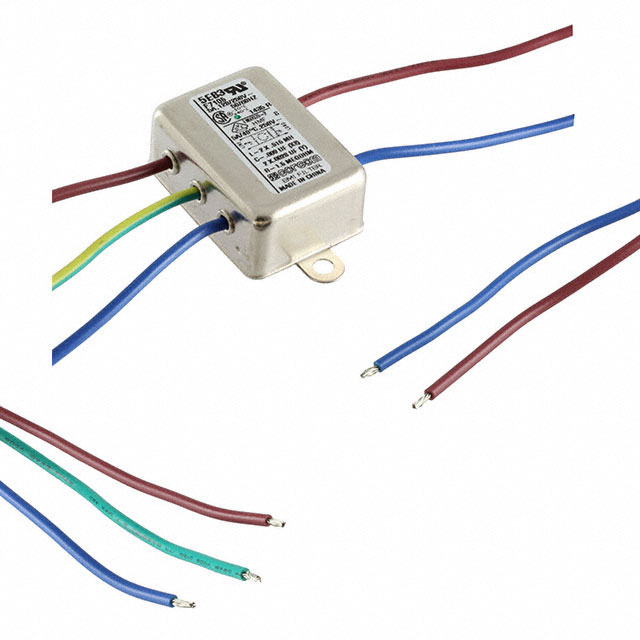

TE Connectivity Corcom Filters 6609020-8	CSA UR VDE	5 A	516 µH	Wire Leads	250 V	Single Phase	40 °C	-10 °C	General Purpose	60 Hz	50 Hz	Chassis Mount	Single Stage
TE Connectivity Corcom Filters 6609020-3	CSA UR VDE	2 A	539 µH	Quick Connect	250 V	Single Phase	40 °C	-10 °C	General Purpose	60 Hz	50 Hz	Chassis Mount	Single Stage
TE Connectivity Corcom Filters 6609020-5	CSA UR VDE	3 A	1.76 mH	Quick Connect	250 V	Single Phase	40 °C	-10 °C	General Purpose	60 Hz	50 Hz	Chassis Mount	Single Stage
TE Connectivity Corcom Filters 1-6609020-1	CSA UR VDE	20 A	440 µH	Quick Connect	250 V	Single Phase	40 °C	-10 °C	General Purpose	60 Hz	50 Hz	Chassis Mount	Single Stage
