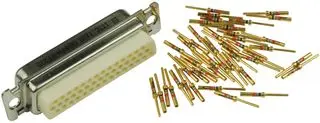

DDMA Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CONN D-SUB PLG 50P PNL MT CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Color | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Number of Positions | Current Rating (Amps) | Connector Style | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Rows [custom] | Shell Material, Finish | Connector Type | Termination | Contact Finish | Flange Feature | Wire Gauge [Min] | Wire Gauge [Max] | Features | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | -55 C | 150 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | 5 | D DD | UL94 V-0 | 50 | 7.5 A | D-Sub | Panel Mount | 50 µin | 1.27 µm | Signal | 3 | Steel Yellow Chromate Plated Cadmium | Plug Male Pins | Crimp | Gold | Cable Side (M3) | |||||
ITT Cannon, LLC | -55 C | 125 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | White | UL94 V-0 | 78 | 7.5 A | D-Sub High Density | Panel Mount | Signal | Steel Tin-Nickel Plated | Plug Male Pins | Crimp | Gold | Housing/Shell (Unthreaded) | 22 AWG | 28 AWG | Grounding Indents | |||||||
ITT Cannon, LLC | -55 C | 150 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | UL94 V-0 | 78 | 7.5 A | D-Sub High Density | Panel Mount | 50 µin | 1.27 µm | Signal | Stainless Steel | Plug Male Pins | Crimp | Gold | Housing/Shell (Unthreaded) | ||||||||
ITT Cannon, LLC | -55 C | 125 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | White | 5 | D DD | UL94 V-0 | 50 | 7.5 A | D-Sub | Panel Mount | 30 Áin | 0.76 Ám | Signal | 3 | Plug Male Pins | Crimp | Gold | Housing/Shell (Unthreaded) | 19.5 AWG | 28 AWG | Yellow Chromate Plated Zinc | Steel | ||
ITT Cannon, LLC | -55 C | 150 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | UL94 V-0 | 78 | 7.5 A | D-Sub High Density | Panel Mount | 50 µin | 1.27 µm | Signal | Stainless Steel | Receptacle Female Sockets | Crimp | Gold | Housing/Shell (Unthreaded) | ||||||||
 ITT Cannon, LLC | -55 C | 150 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | 5 | D DD | UL94 V-0 | 50 | 7.5 A | D-Sub | Panel Mount | 50 µin | 1.27 µm | Signal | 3 | Steel Tin-Nickel Plated | Plug Male Pins | Crimp | Gold | Housing/Shell (Unthreaded) | Grounding Indents | ||||
ITT Cannon, LLC | -55 C | 125 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | White | 5 | D DD | UL94 V-0 | 50 | 7.5 A | D-Sub | Panel Mount | Signal | 3 | Brass Yellow Chromate Plated Cadmium | Receptacle Female Sockets | Crimp | Gold | Housing/Shell (Unthreaded) | 19.5 AWG | 28 AWG | |||||
ITT Cannon, LLC | -55 C | 150 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | 5 | D DD | UL94 V-0 | 50 | 7.5 A | D-Sub | Panel Mount | 50 µin | 1.27 µm | Signal | 3 | Steel Yellow Chromate Plated Cadmium | Receptacle Female Sockets | Crimp | Gold | Cable Side (4-40) | |||||
ITT Cannon, LLC | -55 C | 150 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | UL94 V-0 | 78 | 7.5 A | D-Sub High Density | Panel Mount | 50 µin | 1.27 µm | Signal | Plug Male Pins | Crimp | Gold | Housing/Shell (Unthreaded) | Yellow Chromate Plated Zinc | Steel | |||||||
ITT Cannon, LLC | -55 C | 150 °C | Copper Alloy | Polycyclohexylenedimethylene Terephthalate (PCT) | Black | 5 | D DD | UL94 V-0 | 50 | 7.5 A | D-Sub | Panel Mount | 50 µin | 1.27 µm | Signal | 3 | Stainless Steel | Receptacle Female Sockets | Crimp | Gold | Housing/Shell (Unthreaded) |
