09100000 Series
Manufacturer: HARTING
Beta
⌘K
RECTANGULAR HOOD, SIZE 1A, POLYAMIDE
| Part | Lock Location | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Ingress Protection | Style | Housing Color | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

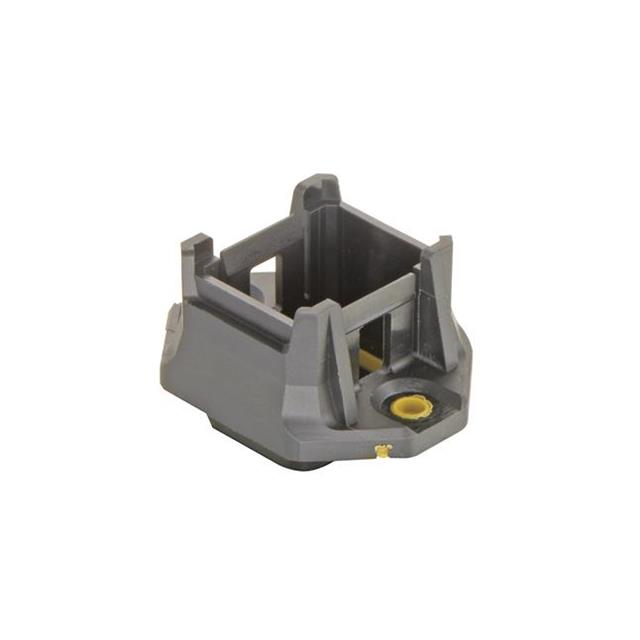

 HARTING | Screw Locks on Hood | Base - Panel Mount | -30 ░C | 90 °C | Polyamide (PA) Nylon | IP65 - Dust Tight Water Resistant | Bottom Entry | Black | 25.8 mm | 20.2 mm | 1.016 in | 1.354 " | 34.4 mm | 0.795 " | 1A | |||

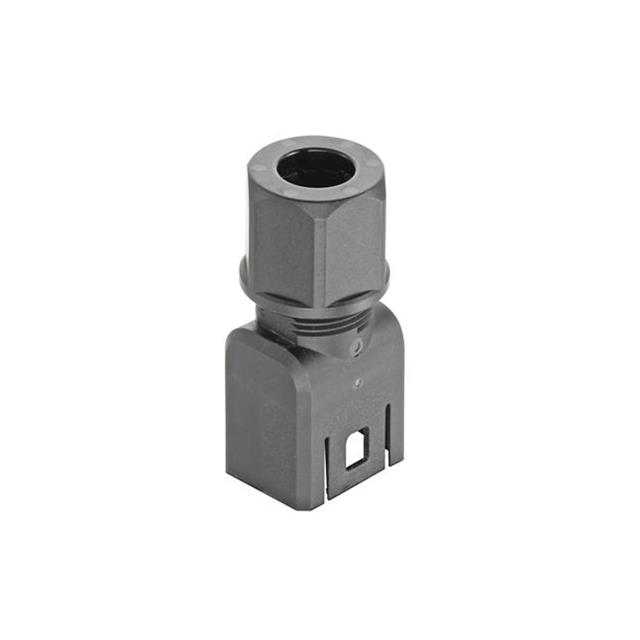

 HARTING | Screw Locks on Hood | Base - Panel Mount 90° | -30 ░C | 90 °C | Polyamide (PA) Nylon | IP65 - Dust Tight Water Resistant | Bottom Entry | Black | 25.8 mm | 22.8 mm | 34.4 mm | 1A | 0.898 " | 1.354 " | 1.016 " |
