1437506 Series

Catalog

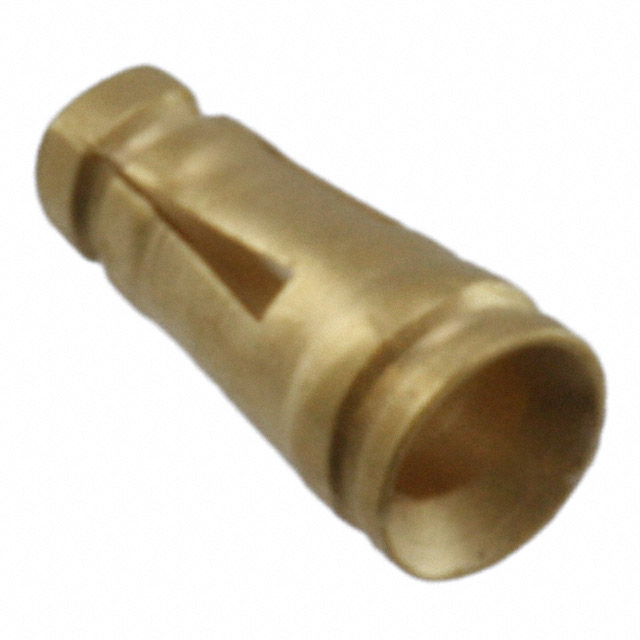

CONN PIN RCPT .020-.030 PRESSFIT

Part	Board Thickness [custom]	Board Thickness [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter	Mounting Hole Diameter	Termination	Contact Material	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Accepts Square Pin Size [x]	Accepts Square Pin Size [x]	Accepts Square Pin Size [y]	Accepts Square Pin Size [y]	Length - Overall	Length - Overall	Mounting Hole Diameter	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]
TE Connectivity AMP Connectors 2-1437506-4	0.76 mm	0.03 in	-55 C	125 °C	0.058 "	1.47 mm	Press-Fit	Beryllium Copper	0.136 in	3.45 mm	0.51 mm	0.76 mm	0.03 "	0.02 in	No Tail	0.038 in	0.97 mm	24.8 µin	0.63 µm	Gold
TE Connectivity AMP Connectors 2-1437506-0	0.76 mm	0.03 in	-55 C	125 °C	1.04 mm		Press-Fit	Beryllium Copper			0.41 mm	0.53 mm	0.021 in	0.016 "	No Tail	0.026 in	0.66 mm	24.8 µin	0.63 µm	Gold	0.28 mm	0.011 in	0.018 in	0.46 mm	0.094 in	2.39 mm	0.041 in
TE Connectivity AMP Connectors 3-1437506-4
TE Connectivity AMP Connectors 1-1437506-3	0.76 mm	0.03 in	-55 C	125 °C			Press-Fit	Beryllium Copper	0.156 in	3.96 mm	0.89 mm	1.14 mm	0.045 "	0.035 "	No Tail		0.052 "	24.8 µin	0.63 µm	Gold								2.08 mm	0.082 in	1.32 mm
