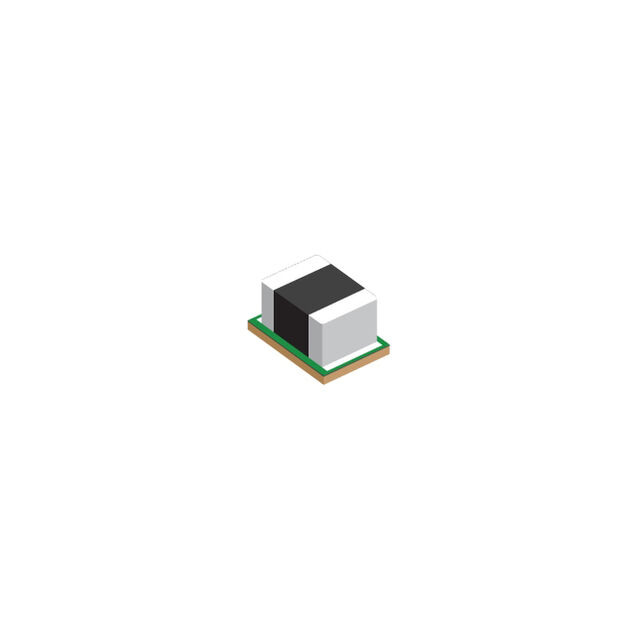

TPSM82813 Series

Catalog

6V 3A STEP-DOWN MODULE WITH OPTIONAL FREQUENCY SYNCHRONIZATION, ADJUSTABLE SOFT-START AND TRACKING

Part	Number of Outputs	Package / Case	Applications	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Mounting Type	Features	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Control Features	Power (Watts)
Texas Instruments TPSM82813SSILR	1	14-DFN Module	ITE (Commercial)	0.6 V	5.5 V	Surface Mount	Adjustable Output	Non-Isolated PoL Module	0.09 in	0.12 in	3 mm	4 mm	0.16 "	2.4 mm	3 A	6 V	14-uSIP (4x3)	125 °C	-40 C	2.75 V
Texas Instruments TPSM82813PVCAR	1	13-PowerQFN	ITE (Commercial)	0.6 V	5.5 V	Surface Mount	Adjustable Output	Non-Isolated PoL Module							3 A	6 V	13-QFN	125 °C	-40 C	2.7 V	2.5	3	Active High Enable	17 W
Texas Instruments TPSM82813SILR	1	14-DFN Module	ITE (Commercial)	0.6 V	5.5 V	Surface Mount	Adjustable Output	Non-Isolated PoL Module	0.09 in	0.12 in	3 mm	4 mm	0.16 "	2.4 mm	3 A	6 V	14-uSIP (4x3)	125 °C	-40 C	2.75 V			Active Low Enable
