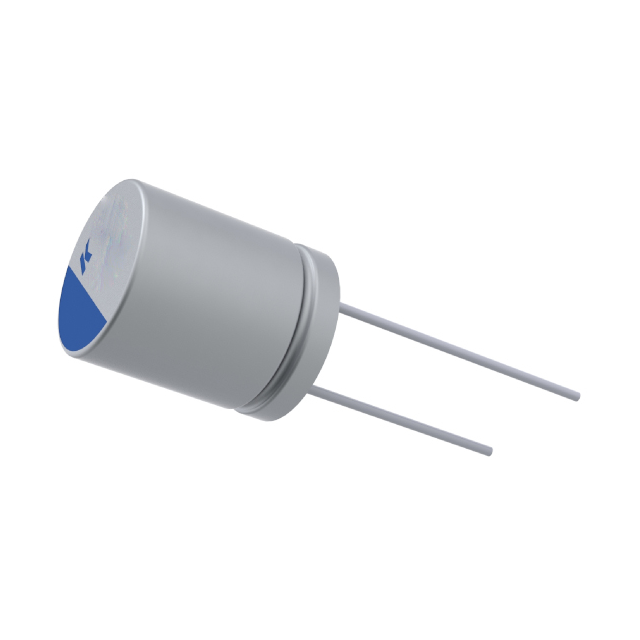

A750EQ Series

Manufacturer: KEMET

Catalog

CAP, 470UF, 20%, 16V, ALU ELEC, POLYMER ROHS COMPLIANT: YES

Part	Package / Case	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	ESR (Equivalent Series Resistance)	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Capacitance	Ripple Current @ Low Frequency	Voltage - Rated	Mounting Type	Tolerance	Lead Spacing	Lead Spacing
KEMET A750EQ477M1CAAE015	Can Radial	3.6 A	-55 C	105 ░C	General Purpose	15 mOhm	Polymer	0.472 in	12 mm	0.248 "	6.3 mm	2000 Hrs	470 µF	180 mA	16 V	Through Hole	20 %	2.5 mm	0.098 in
KEMET A750EQ687M1AAAE015	Can Radial	3.6 A	-55 C	105 ░C	General Purpose	15 mOhm	Polymer	0.472 in	12 mm	0.248 "	6.3 mm	2000 Hrs	680 µF	180 mA	10 V	Through Hole	20 %	2.5 mm	0.098 in
KEMET A750EQ567M1AAAE012	Can Radial	4.1 A	-55 C	105 ░C	General Purpose	12 mOhms	Polymer	0.472 in	12 mm	0.248 "	6.3 mm	2000 Hrs	560 µF	205 mA	10 V	Through Hole	20 %	2.5 mm	0.098 in
KEMET A750EQ397M1CAAE015	Can Radial	3.6 A	-55 C	105 ░C	General Purpose	15 mOhm	Polymer	0.472 in	12 mm	0.248 "	6.3 mm	2000 Hrs	390 µF	180 mA	16 V	Through Hole	20 %	2.5 mm	0.098 in
