9927 Series
Manufacturer: Belden Inc.
Beta
⌘K

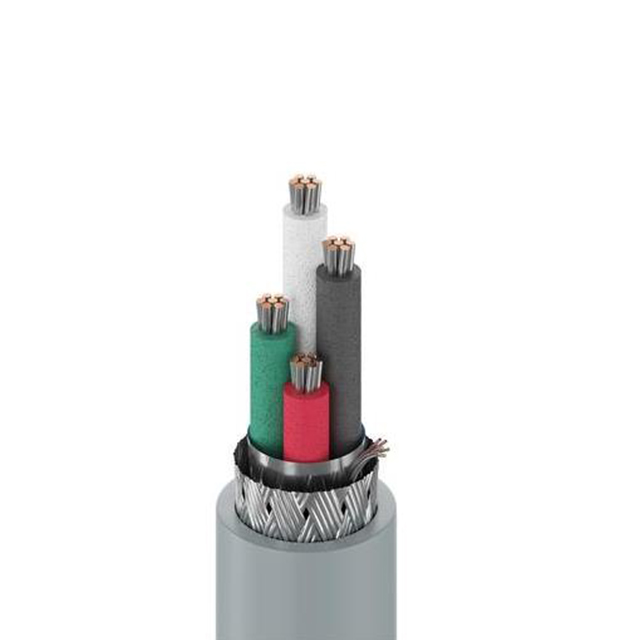

CABLE 4CON 24AWG CHROM SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Insulation | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Features | Length | Length | Usage | Cable Type | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 0.035 in | 0.889 mm | Copper Tinned | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Braid Foil | 7 | 32 AWG | Chrome | Drain Wire | 152.4 m | 500 ft | Computer | Multi-Conductor | 24 AWG | 80 °C | -30 ░C | 4 | 0.219 " | 5.56 mm | UL Style 2919 |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 0.035 in | 0.889 mm | Copper Tinned | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Braid Foil | 7 | 32 AWG | Chrome | Drain Wire | 304.8 m | 1000 ft | Computer | Multi-Conductor | 24 AWG | 80 °C | -30 ░C | 4 | 0.219 " | 5.56 mm | UL Style 2919 |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 0.035 in | 0.889 mm | Copper Tinned | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | Braid Foil | 7 | 32 AWG | Chrome | Drain Wire | Computer | Multi-Conductor | 24 AWG | 80 °C | -30 ░C | 4 | 0.219 " | 5.56 mm | UL Style 2919 |
