PSAA12A Series

Catalog

WALL MOUNT AC ADAPTERS 12W 12V 1A WALL MNT US LEVEL VI

Part	Region Utilized	Cord Length	Cord Length	Voltage - Output	No Load Power Consumption	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Current - Output (Max) [Max]	Applications	Form	Output Connector	Output Connector [diameter]	Output Connector [x]	Operating Temperature [Max]	Input Connector	Polarization	Approval Agency	Input Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Standard Number
Phihong USA PSAA12A-120L6-R	North America	1.2 m	47.2 in	12 V	75 mW	12 W	264 VAC	90 VAC	CoC Tier 2 Level VI	1 A	ITE (Commercial)	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	NEMA 1-15P	Positive Center	cULus	Fixed Blade	1.81 "	46 mm	71.2 mm	34 mm	1.34 in	2.8 in

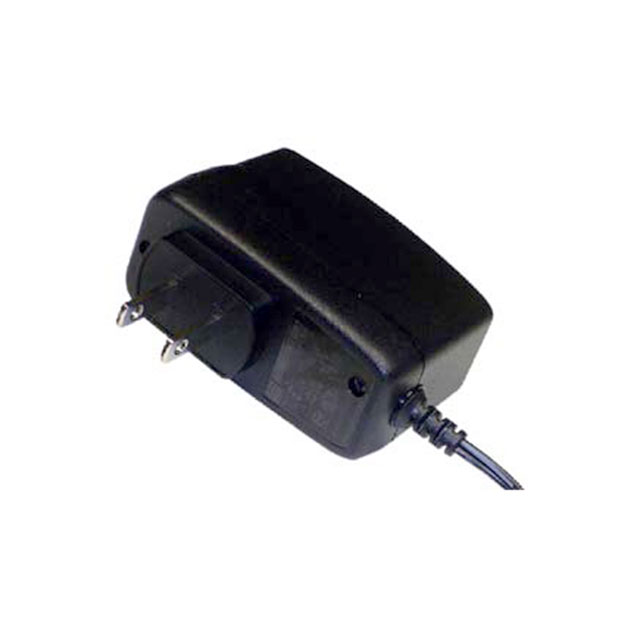

Phihong USA PSAA12A-120L6	North America	1.2 m	47.2 in	12 V	75 mW	12 W	264 VAC	90 VAC	CoC Tier 2 Level VI	1 A	ITE (Commercial)	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	NEMA 1-15P	Positive Center	cULus	Fixed Blade	1.81 "	46 mm	71.2 mm	34 mm	1.34 in	2.8 in	0.187 lb	84.82 g

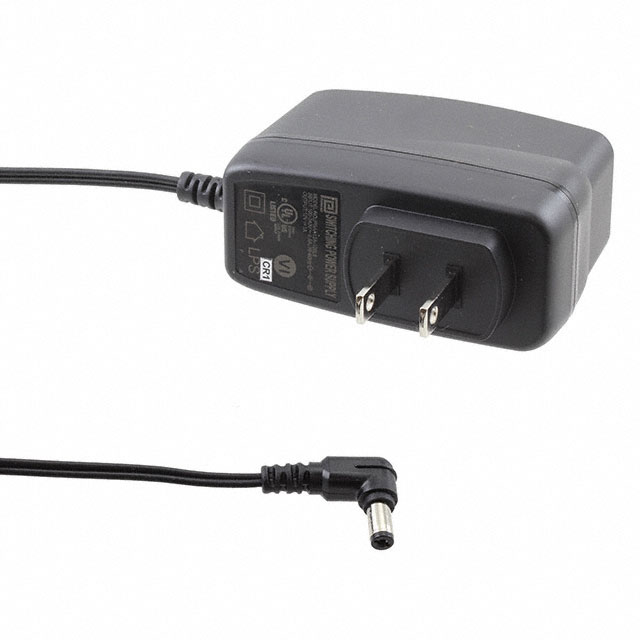

Phihong USA PSAA12A-120L6-R-CR1	North America	1.2 m	47.2 in	12 V	75 mW	12 W	264 VAC	90 VAC	CoC Tier 2 Level VI	1 A	ITE (Commercial)	Wall Mount	Barrel Plug R/A	2.1 mm 5.5 mm	10 mm	40 °C	NEMA 1-15P	Positive Center	cULus PSE	Fixed Blade	1.81 "	46 mm	71.2 mm	34 mm	1.34 in	2.8 in	0.187 lb	84.82 g	55022 60950-1 62368-1
