10056845 Series

Catalog

CONN HEADER R/A 16POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Connector Type	Shrouding	Contact Shape	Contact Type	Insulation Color	Insulation Height	Insulation Height	Contact Material	Number of Positions Loaded	Fastening Type	Contact Finish - Post	Mounting Type	Style	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Material	Number of Positions	Number of Positions [custom]
Amphenol ICC (FCI) 10056845-116LF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic	16
Amphenol ICC (FCI) 10056845-110KLF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic	10

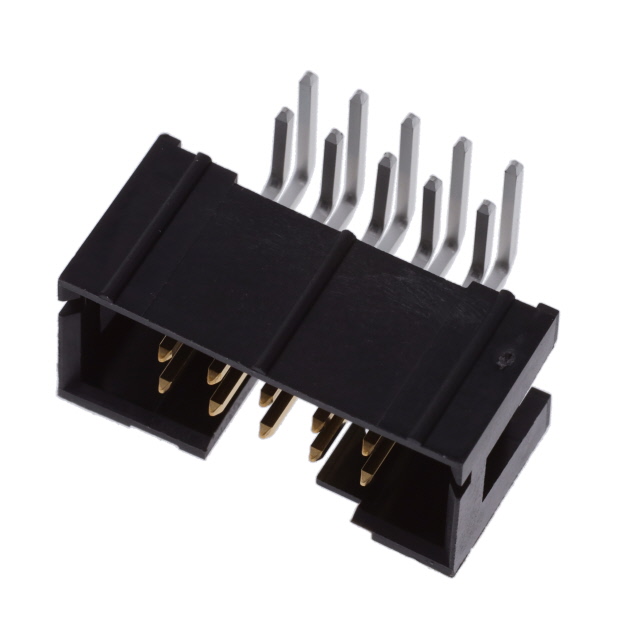

Amphenol ICC (FCI) 10056845-110LF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic	10
Amphenol ICC (FCI) 10056845-140LF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic	40
Amphenol ICC (FCI) 10056845-134LF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic		34
Amphenol ICC (FCI) 10056845-108LF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic	8

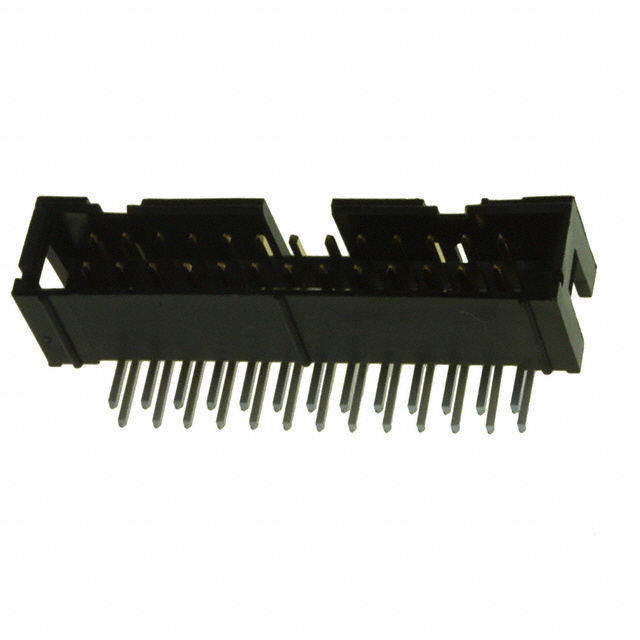

Amphenol ICC (FCI) 10056845-126LF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic	26
Amphenol ICC (FCI) 10056845-114LF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic	14
Amphenol ICC (FCI) 10056845-130LF	78.7 µin	2 µm	2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot	0.76 Ám	30 Áin	Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock	Tin	Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in	Gold GXT™	Thermoplastic	30

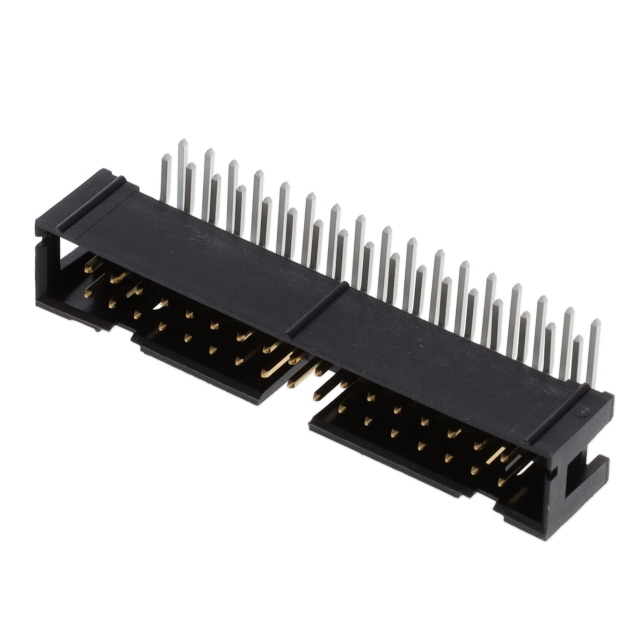

Amphenol ICC (FCI) 10056845-S34KLF			2	0.1 in	2.54 mm	0.1 "	2.54 mm	Keying Slot			Solder	Header	Shrouded - 4 Wall	Square	Male Pin	Black	0.362 in	9.2 mm	Copper Alloy	All	Detent Lock		Right Angle Through Hole	Board to Cable/Wire	UL94 V-0	2 mm	0.079 in	6 mm	0.236 in		Thermoplastic		34
