WR9ME1500 Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 18W

Part	Output Connector [x]	Output Connector [diameter]	Output Connector	No Load Power Consumption	Standard Number	Form	Region Utilized	Polarization	Input Connector	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Cord Length	Cord Length	Approval Agency	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications

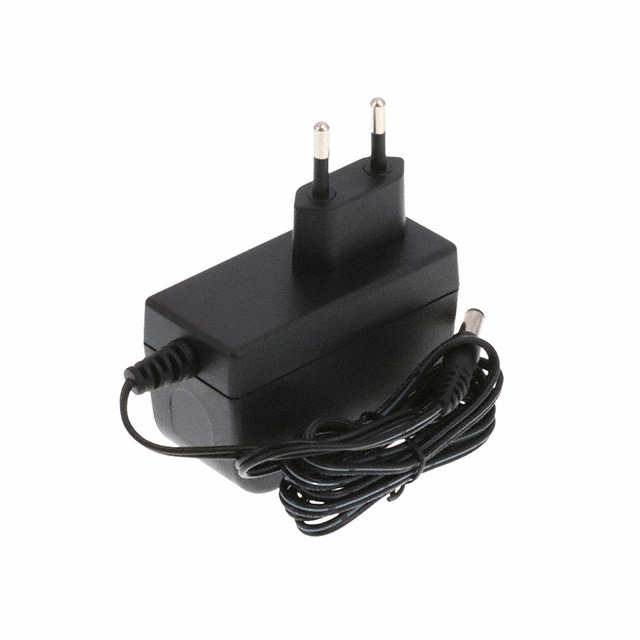

GlobTek, Inc. WR9ME1500CCP-F(R6B)	11 mm	2.1 mm 5.5 mm	Barrel Plug	75 mW	60950-1	Wall Mount	Europe	Positive Center	CEE 7/16	1.5 A	2.54 in	1.38 in	73.5 mm	35 mm	2.89 in	64.4 mm	60.2 in	1.53 m	CE EAC LPS SIQ UkrSEPRO	Fixed Blade	264 VAC	90 VAC	12 V	18 W	40 °C	0 °C	Level VI	ITE (Commercial)
