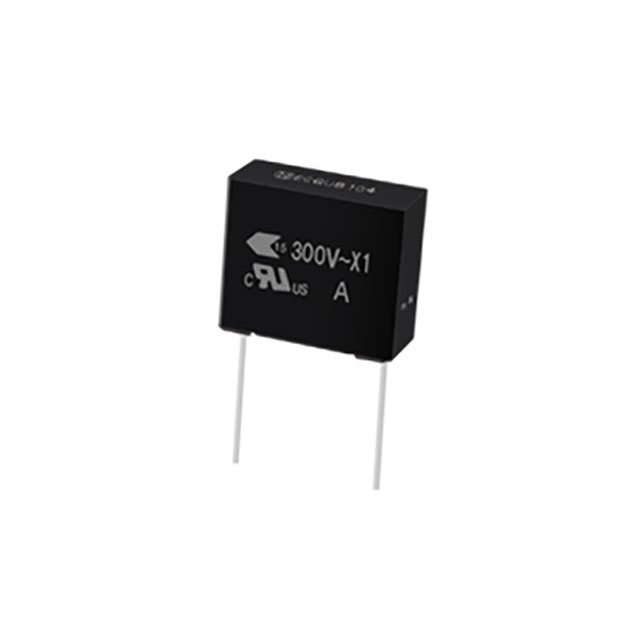

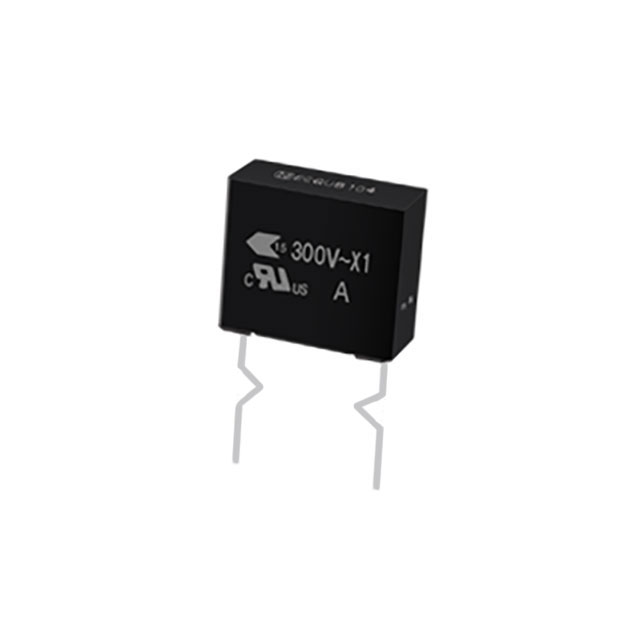

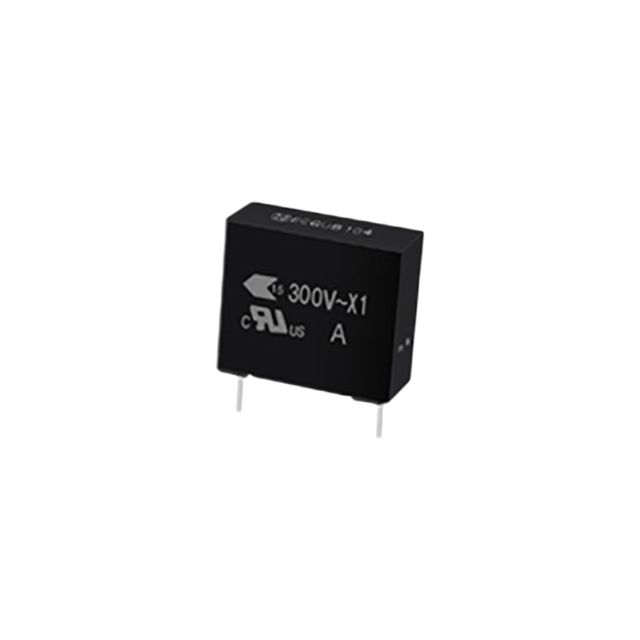

ECQ-UBAF102 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.001UF 20% 300VAC RADI

Part	Dielectric Material	Applications	Mounting Type	Package / Case	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Tolerance	Voltage Rating - AC	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Termination	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max)
Panasonic Electronic Components ECQ-UBAF102V1	Polypropylene (PP) Metallized	EMI RFI Suppression	Through Hole	Radial	15 mm	0.591 in	0.669 "	17 mm	20 %	300 V	X1 Y2	15.3 mm	5 mm	0.602 "	0.197 "	-40 C	110 °C	0.001 µF	PC Pins
Panasonic Electronic Components ECQ-UBAF102VB	Polypropylene (PP) Metallized	EMI RFI Suppression	Through Hole	Radial	15 mm	0.591 in	0.669 "	17 mm	10 %	300 V	X1 Y2	15.3 mm	5 mm	0.602 "	0.197 "	-40 C	110 °C	0.001 µF	PC Pins
Panasonic Electronic Components ECQ-UBAF102V5	Polypropylene (PP) Metallized	EMI RFI Suppression	Through Hole	Radial	15 mm	0.591 in	0.669 "	17 mm	10 %	300 V	X1 Y2	15.3 mm	5 mm	0.602 "	0.197 "	-40 C	110 °C	0.001 µF	PC Pins
Panasonic Electronic Components ECQ-UBAF102M	Polypropylene (PP) Metallized	EMI RFI Suppression	Through Hole	Radial	0.492 in				20 %	300 V	X1 Y2	15.3 mm	5 mm	0.602 "	0.197 "	-40 C	110 °C	0.001 µF	PC Pins	12.5 mm	0.472 in	12 mm
Panasonic Electronic Components ECQ-UBAF102KA	Polypropylene (PP) Metallized	EMI RFI Suppression	Through Hole	Radial	0.492 in				10 %	300 V	X1 Y2	15.3 mm	5 mm	0.602 "	0.197 "	-40 C	110 °C	0.001 µF	PC Pins	12.5 mm	0.472 in	12 mm
Panasonic Electronic Components ECQ-UBAF102MA	Polypropylene (PP) Metallized	EMI RFI Suppression	Through Hole	Radial	0.492 in				20 %	300 V	X1 Y2	15.3 mm	5 mm	0.602 "	0.197 "	-40 C	110 °C	0.001 µF	PC Pins	12.5 mm	0.472 in	12 mm
Panasonic Electronic Components ECQ-UBAF102K	Polypropylene (PP) Metallized	EMI RFI Suppression	Through Hole	Radial	0.492 in				10 %	300 V	X1 Y2	15.3 mm	5 mm	0.602 "	0.197 "	-40 C	110 °C	0.001 µF	PC Pins	12.5 mm	0.472 in	12 mm
