5979-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

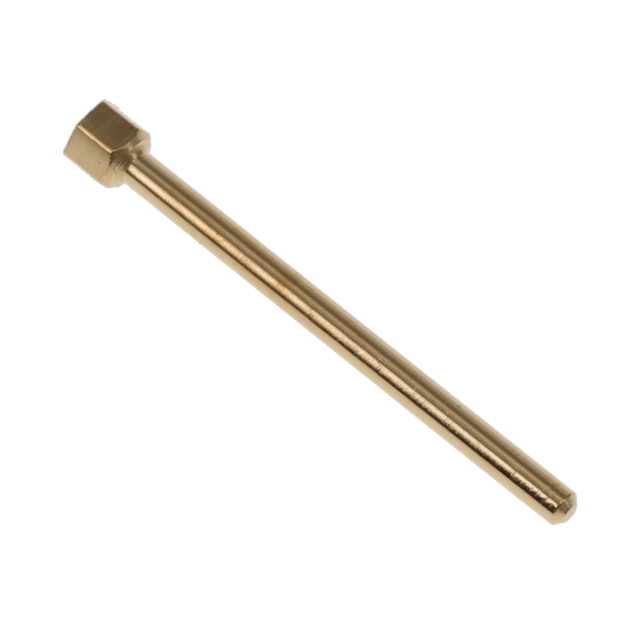

PRESS-FIT PCB PIN
| Part | Length - Above Flange [x] | Length - Above Flange | Insulation | Terminal Type | Terminal Style | Length - Overall | Length - Overall | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.59 in | 14.99 mm | Non-Insulated | PC Pin | Single End | 0.65 in | 16.51 mm | 0.078 " | 1.98 mm | Hex Press-Fit | Through Hole | 0.074 in | 1.88 mm | Gold | 0.04 in | 1.02 mm | 0.25 Ám | 10 Áin | Brass Alloy |
