PPPN072 Series

Catalog

CONN HDR 14POS 0.079 GOLD SMD

Part	Insulation Material	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Current Rating (Amps)	Insulation Color	Contact Finish - Mating	Mounting Type	Material Flammability Rating	Number of Positions	Contact Type	Connector Type	Features	Termination	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Finish Thickness - Mating	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height
Sullins Connector Solutions PPPN072FFKP	Polyester	Flash	Phosphor Bronze	Square	4.4 mm	0.173 in	-40 C	105 ░C	Gold	0.079 "	2 mm	All	2 A	Black	Gold	Surface Mount	UL94 V-0	14	Female Socket	Header	Board Guide	Solder	2 mm	0.079 in	Push-Pull	Flash	2

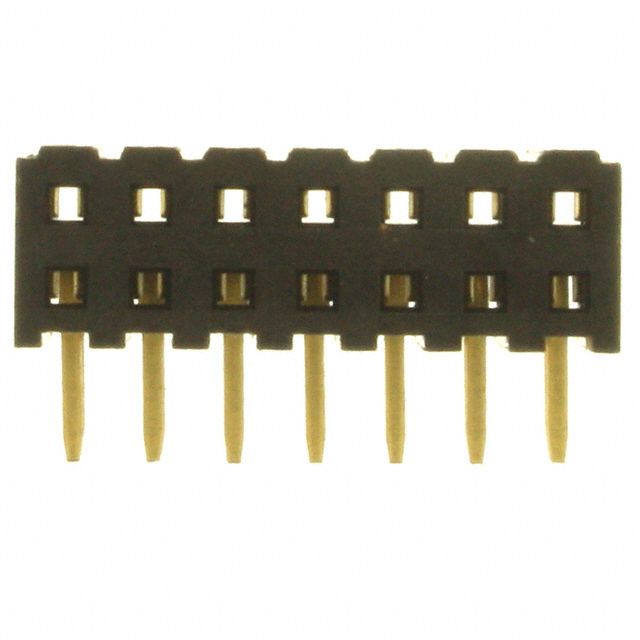

Sullins Connector Solutions PPPN072FJFN	Polyester	Flash	Phosphor Bronze	Square		4.85 mm	-40 C	105 ░C	Gold	0.079 "	2 mm	All		Black	Gold	Right Angle Through Hole	UL94 V-0	14	Female Socket	Header		Solder	2 mm	0.079 in	Push-Pull	Flash	2	0.118 in	3 mm	0.191 in

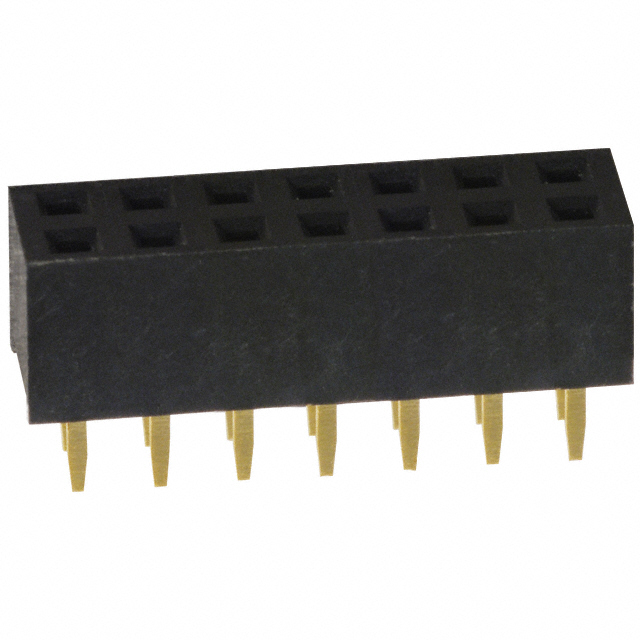

Sullins Connector Solutions PPPN072AFCN	Polyester	Flash	Phosphor Bronze	Square		4.3 mm	-40 C	105 ░C	Gold	0.079 "	2 mm	All		Black	Gold	Through Hole	UL94 V-0	14	Female Socket	Header		Solder	2 mm	0.079 in	Push-Pull	Flash	2	0.094 in	2.4 mm		0.169 "
Sullins Connector Solutions PPPN072GFNP	Polyester	Flash	Phosphor Bronze	Square			-40 C	105 ░C	Gold	0.079 "	2 mm	All	2 A	Black	Gold	Surface Mount	UL94 V-0	14	Female Socket	Header Top or Bottom Entry	Board Guide	Solder	2 mm	0.079 in	Push-Pull	Flash	2
