SI8275 Series

Catalog

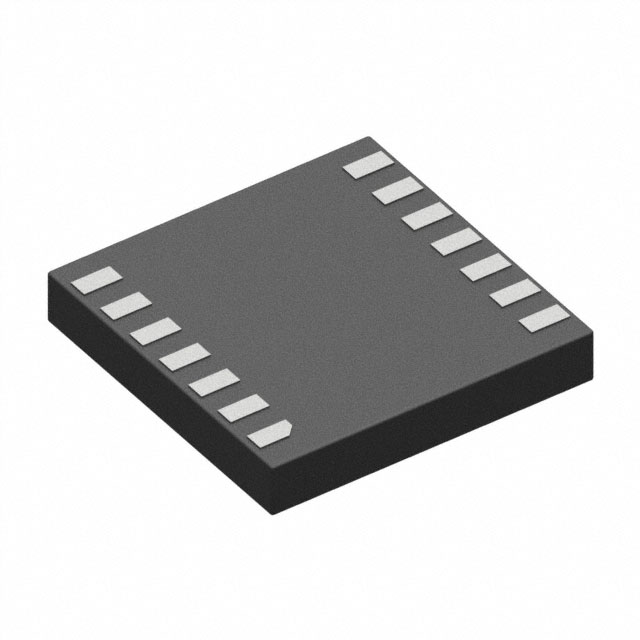

DGTL ISO 2.5KV 2CH GT DVR 14QFN

Part	Common Mode Transient Immunity (Min) [Min]	Mounting Type	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Technology	Supplier Device Package	Pulse Width Distortion (Max)	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - Peak Output	Rise / Fall Time (Typ)	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Number of Channels	Voltage - Isolation	Package / Case	Number of Channels [custom]
Skyworks Solutions Inc. SI8275ABD-IM1	200 V/ns	Surface Mount	30 V	4.2 V	14-VDFN	125 °C	-40 C	CQC CSA UR VDE	RF Coupling	14-QFN (5x5)	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	75 ns	75 ns	2	2500 Vrms
Skyworks Solutions Inc. SI8275AB-IM1	200 V/ns	Surface Mount	30 V	4.2 V	14-VDFN	125 °C	-40 C	CQC CSA UR VDE	RF Coupling	14-QFN (5x5)	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	75 ns	75 ns	2	2500 Vrms
Skyworks Solutions Inc. SI8275DBD-IS1R	200 V/ns	Surface Mount	30 V	4.2 V	16-SOIC	125 °C	-40 C	CQC CSA UL VDE	RF Coupling	16-SOIC	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	75 ns	75 ns	2	2500 Vrms	0.154 in 3.9 mm
Skyworks Solutions Inc. SI8275ABD-IM	200 V/ns	Surface Mount	30 V	4.6 V	14-VFLGA	125 °C	-40 C	CQC CSA UR VDE	RF Coupling	14-LGA (5x5)	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	75 ns	75 ns	2	2500 Vrms
Skyworks Solutions Inc. SI8275AB-IMR	150 kV/µs	Surface Mount	30 V	4.6 V	14-VFLGA	125 °C	-40 C	CQC CSA UR VDE	RF Coupling	14-LGA (5x5)	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	60 ns	60 ns	2	2500 Vrms
Skyworks Solutions Inc. SI8275AB-IM	150 kV/µs	Surface Mount	30 V	4.6 V	14-VFLGA	125 °C	-40 C	CQC CSA UR VDE	RF Coupling	14-LGA (5x5)	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	60 ns	60 ns	2	2500 Vrms
Skyworks Solutions Inc. SI8275DB-IS1	150 kV/µs	Surface Mount	30 V	4.2 V	16-SOIC	125 °C	-40 C	CQC CSA UR VDE	RF Coupling	16-SOIC	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	60 ns	60 ns	2	2500 Vrms	0.154 in 3.9 mm
Skyworks Solutions Inc. SI8275GA-IM1	200 V/ns	Surface Mount	30 V	4.2 V	14-VDFN	125 °C	-40 C	CQC CSA UL VDE	RF Coupling	14-QFN (5x5)	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	75 ns	75 ns		1000 VAC		1
Skyworks Solutions Inc. SI8275DA-IM1	150 kV/µs	Surface Mount	30 V	4.2 V	14-VDFN	125 °C	-40 C	CQC CSA UL VDE	RF Coupling	14-QFN (5x5)	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	60 ns	60 ns	2	2500 Vrms
Skyworks Solutions Inc. SI8275BB-IS1R	150 kV/µs	Surface Mount	30 V	4.2 V	16-SOIC	125 °C	-40 C	CQC CSA UR VDE	RF Coupling	16-SOIC	8 ns	4 A	1.8 A	4 A	10.5 ns 13.3 ns	60 ns	60 ns	2	2500 Vrms	0.154 in 3.9 mm
