794953 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PLUG HOUSING, PANEL MOUNT, 94V-2, 20WAY
| Part | Note | Contact Termination | Connector Type | Fastening Type | Mounting Type | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing | Row Spacing | Number of Rows [custom] | Number of Positions | Color | Insulation Material | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

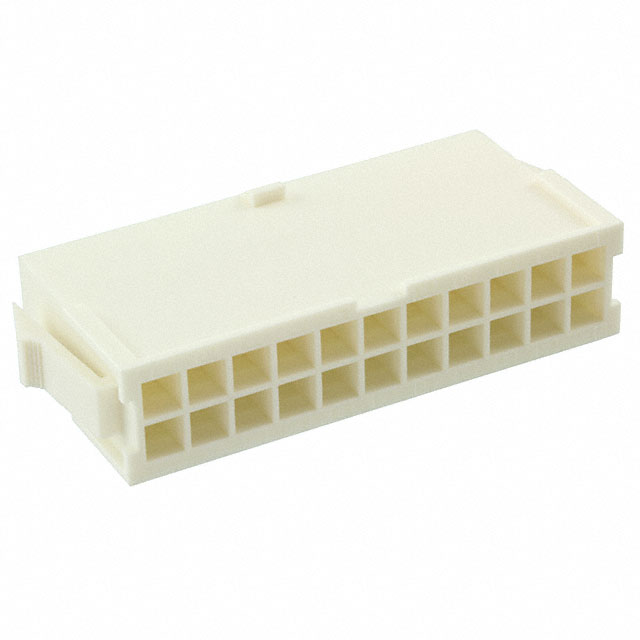

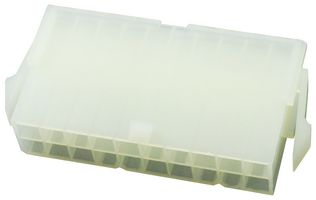

 TE Connectivity AMP Connectors | Contacts Not Included | Crimp | Plug | Locking Ramp | Panel Mount Snap-In | 0.165 in | 4.2 mm | -40 C | 105 ░C | 0.165 in | 4.2 mm | 2 | 20 | Natural | Nylon Polyamide (PA) | Male Pin |

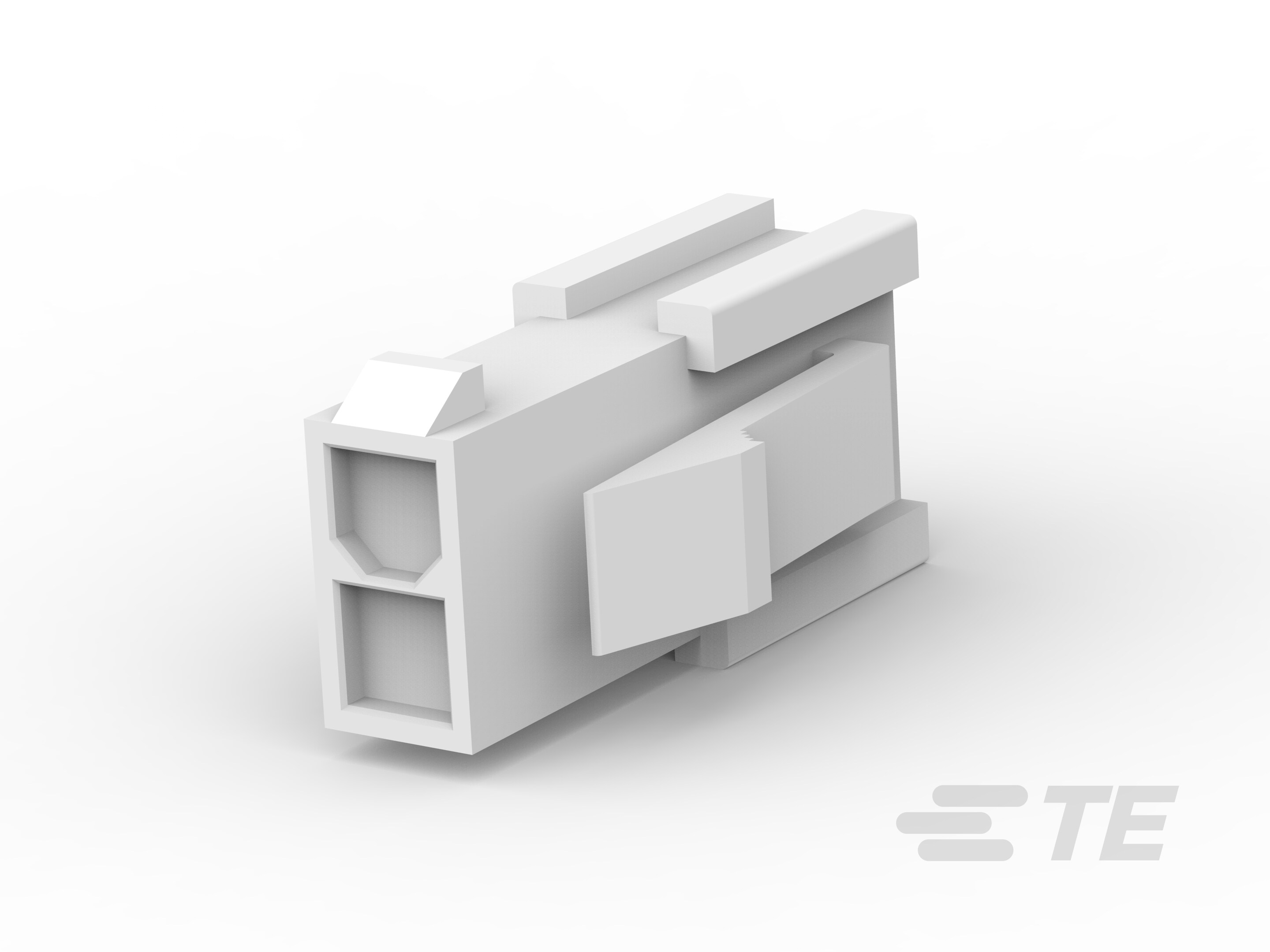

 TE Connectivity AMP Connectors | Contacts Not Included | Crimp | Plug | Panel Mount Snap-In | -40 C | 105 ░C | 0.165 in | 4.2 mm | 2 | 2 | Natural | Nylon Polyamide (PA) | Male Pin | |||

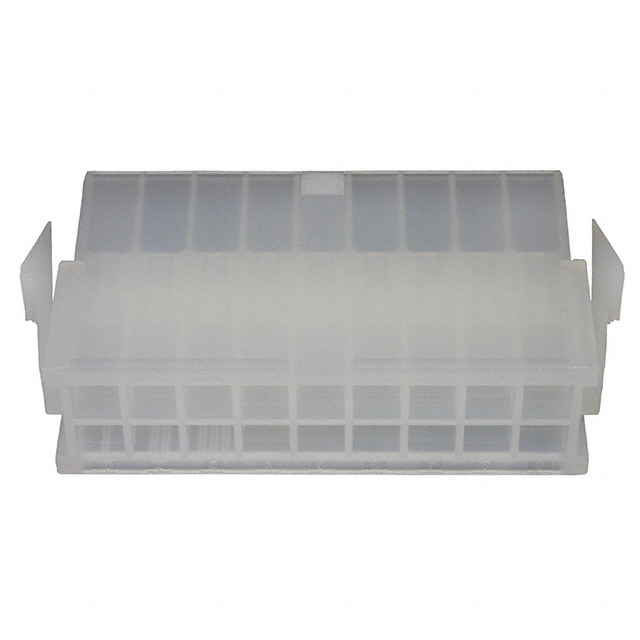

 TE Connectivity AMP Connectors | Contacts Not Included | Crimp | Plug | Locking Ramp | Panel Mount Snap-In | 0.165 in | 4.2 mm | -40 C | 105 ░C | 0.165 in | 4.2 mm | 2 | 18 | Natural | Nylon Polyamide (PA) | Male Pin |
 TE Connectivity AMP Connectors | Contacts Not Included | Crimp | Plug | Locking Ramp | Panel Mount Snap-In | 0.165 in | 4.2 mm | -40 C | 105 ░C | 0.165 in | 4.2 mm | 2 | 22 | Natural | Nylon Polyamide (PA) | Male Pin |

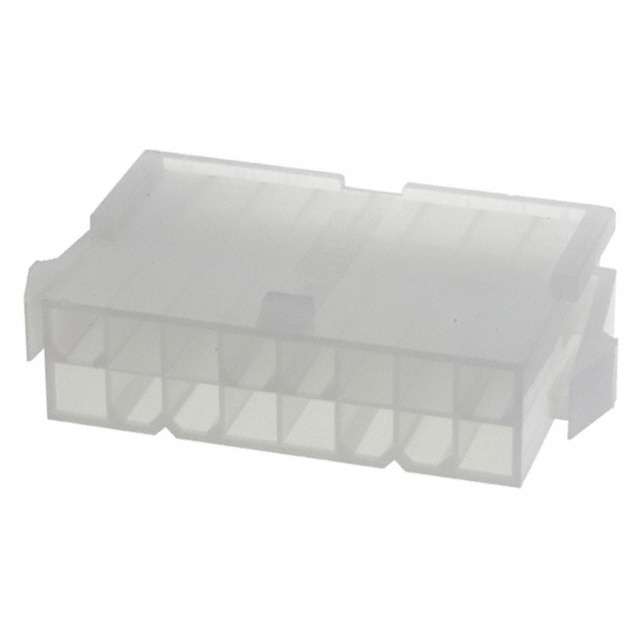

 TE Connectivity AMP Connectors | Contacts Not Included | Crimp | Plug | Locking Ramp | Panel Mount Snap-In | 0.165 in | 4.2 mm | -40 C | 105 ░C | 0.165 in | 4.2 mm | 2 | 16 | Natural | Nylon Polyamide (PA) | Male Pin |

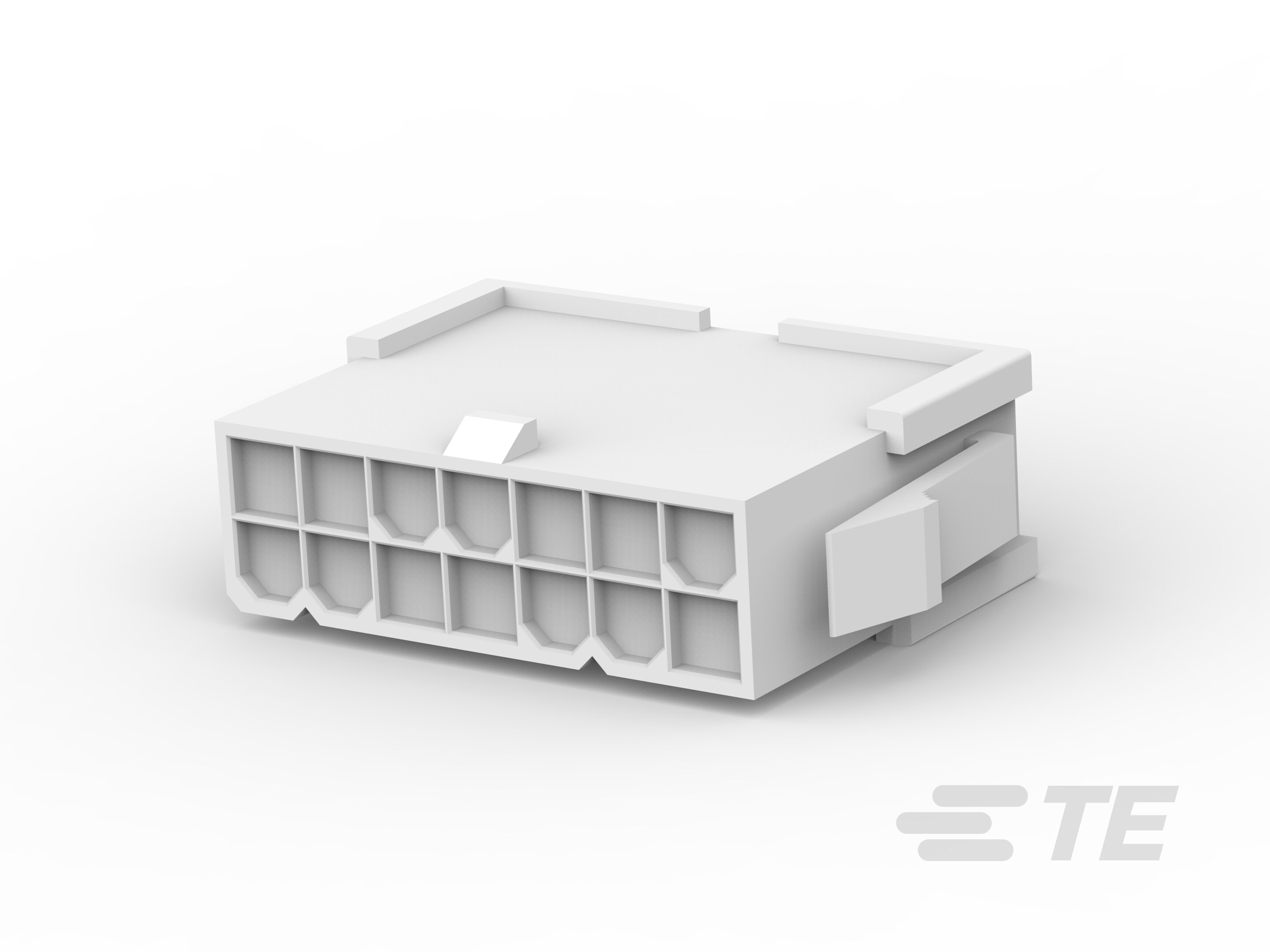

 TE Connectivity AMP Connectors | Contacts Not Included | Crimp | Plug | Locking Ramp | Panel Mount Snap-In | 0.165 in | 4.2 mm | -40 C | 105 ░C | 0.165 in | 4.2 mm | 2 | 14 | Natural | Nylon Polyamide (PA) | Male Pin |
 TE Connectivity AMP Connectors | Contacts Not Included | Crimp | Plug | Locking Ramp | Panel Mount Snap-In | 0.165 in | 4.2 mm | -40 C | 105 ░C | 0.165 in | 4.2 mm | 2 | 8 | Natural | Nylon Polyamide (PA) | Male Pin |
