ELSH-F91 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED SHUEN RED 623NM SMD

Part	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Package / Case	Color	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Wavelength [Min]	Wavelength [Max]	Wavelength	Viewing Angle	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	CRI (Color Rendering Index)	CCT (K)	CCT (K) [Max]	CCT (K) [Min]	Flux @ 85°C, Current - Test	Current - Test
Everlight Electronics Co Ltd ELSH-F91R3-0LPNM-BR4R6	25 °C	0.12 inches	4.5 mm	3.05 mm	0.177 "	8 °C/W	100 lm	90 lm	Surface Mount	2.65 V	750 mA	1218 (3246 Metric)	Red	SMD	0.085 in	2.15 mm	615 nm	630 nm	623 nm	120 °
Everlight Electronics Co Ltd ELSH-F91N1-0CPGS-C4000		0.177 in	3.05 mm	4.5 mm	0.12 in	10 °C/W			Surface Mount	3.4 V	400 mA	1812 (4532 Metric)	Neutral White		0.085 in	2.15 mm				120 °	76 lm/W	100 lm	90 lm	75	4000 K	4260 K	3710 K	78 lm	350 mA

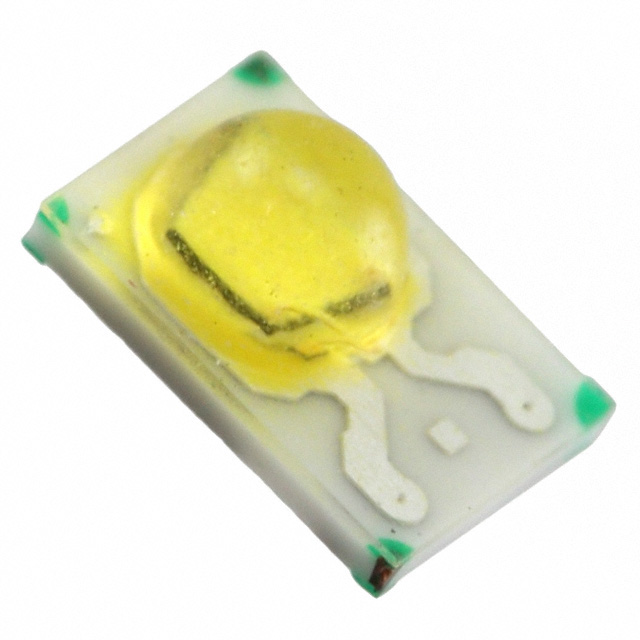

Everlight Electronics Co Ltd ELSH-F91N1-0CPGS-C4500		0.177 in	3.05 mm	4.5 mm	0.12 in	10 °C/W			Surface Mount	3.4 V	400 mA	1812 (4532 Metric)	Neutral White		0.085 in	2.15 mm				120 °	76 lm/W	100 lm	90 lm	75	4500 K			78 lm	350 mA
Everlight Electronics Co Ltd ELSH-F91C1-0CPGS-C5000		0.177 in	3.05 mm	4.5 mm	0.12 in	10 °C/W			Surface Mount	3.4 V	400 mA	1812 (4532 Metric)	Cool White		0.085 in	2.15 mm				120 °	76 lm/W	100 lm	90 lm	70	5000 K	5310 K	4745 K	78 lm	350 mA
Everlight Electronics Co Ltd ELSH-F91C1-0LPGS-C5700		0.177 in	3.05 mm	4.5 mm	0.12 in	10 °C/W			Surface Mount	3.4 V	400 mA	1812 (4532 Metric)	Cool White		0.085 in	2.15 mm				120 °	76 lm/W	100 lm	90 lm	70	5700 K	6020 K	5310 K	78 lm	350 mA
Everlight Electronics Co Ltd ELSH-F91G3-0LPNM-DG1G3	25 °C	0.12 inches	4.5 mm	3.05 mm	0.177 "	6 °C/W	100 lm	90 lm	Surface Mount	3.55 V	750 mA	1218 (3246 Metric)	Green	SMD	0.085 in	2.15 mm			528 nm	120 °	38 lm/W
Everlight Electronics Co Ltd ELSH-F91Y3-0LPNM-BA3A5	25 °C	0.12 inches	4.5 mm	3.05 mm	0.177 "	8 °C/W	100 lm	90 lm	Surface Mount	2.65 V	750 mA	1218 (3246 Metric)	Amber	SMD	0.085 in	2.15 mm	585 nm	593 nm	589 nm	120 °
Everlight Electronics Co Ltd ELSH-F91C1-0LPGS-C6500		0.177 in	3.05 mm	4.5 mm	0.12 in	10 °C/W			Surface Mount	3.4 V	400 mA	1812 (4532 Metric)	Cool White		0.085 in	2.15 mm				120 °	76 lm/W	100 lm	90 lm	70		7050 K	6020 K	78 lm	350 mA
