309-65 Series

Catalog

HEAT SHRINK TUBING, TFN21 STICK, 2:1, 0.25 ", 6.4 MM, RED, 4 FT, 1.2 M

...

Part	Shelf Life	Length [x]	Length [x]	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shrink Temperature	Features	Length	Length	Shelf Life Start
HELLERMANNTYTON 309-65147	60 Months	4 ft	1.22 m	Red	6.4 mm	0.252 in	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.125 in	3.18 mm	0.022 in	0.56 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant

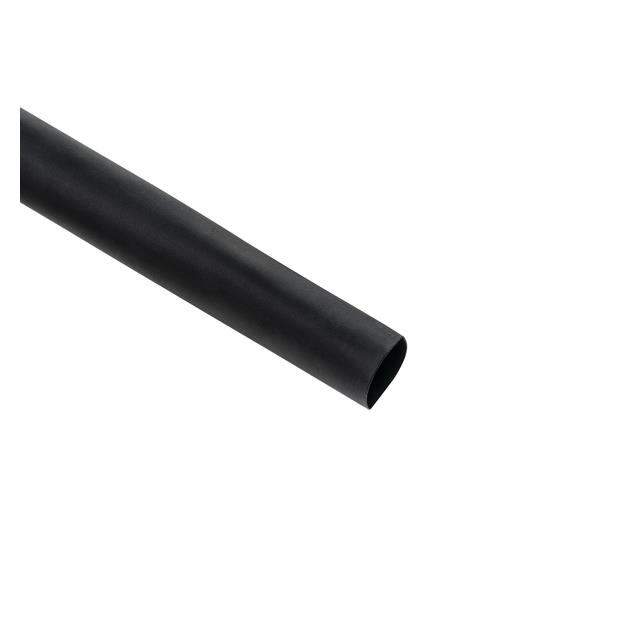

HELLERMANNTYTON 309-65164	60 Months	4 ft	1.22 m	Black	12.7 mm	0.5 "	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.25 in	6.35 mm	0.024 in	0.61 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65112	60 Months	100 ft	30.5 m	Black	2.36 mm	0.093 "	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.047 in	1.19 mm	0.019 in	0.48 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65292	60 Months	4 ft	1.22 m	Green	6.4 mm	0.252 in	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.125 in	3.18 mm	0.022 in	0.56 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65113	60 Months	4 ft	1.22 m	Clear	2.36 mm	0.093 "	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.047 in	1.19 mm	0.019 in	0.48 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65297	60 Months	4 ft	1.22 m	Red	25.4 mm	1 in	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.5 "	12.7 mm	0.034 "	0.87 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65140	60 Months			Clear	6.4 mm	0.252 in	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.125 in	3.18 mm	0.022 in	0.56 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Oil Resistant Solvent Resistant	50 ft	15.2 m
HELLERMANNTYTON 309-65123	60 Months			Black	3.18 mm	0.125 in	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.063 "	1.6 mm	0.019 in	0.48 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	1000 ft	304.8 m	Date of Manufacture
HELLERMANNTYTON 309-65131	60 Months			Red	4.8 mm	0.189 in	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.094 in	2.4 mm	0.019 in	0.48 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	50 ft	15.2 m
HELLERMANNTYTON 309-65158	60 Months	4 ft	1.22 m	White	9.5 mm	0.374 "	-55 C	135 °C	Polyolefin (PO) Irradiated	Tubing Flexible	0.187 in	4.75 mm	0.024 in	0.61 mm	1	2	40 °C	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
