BZE7-2 Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Overtravel [custom]	Overtravel [custom]	Termination Style	Mounting Type	Ingress Protection	Mechanical Life	Circuit	Differential Travel	Differential Travel	Current Rating (Amps)	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Release Force	Voltage Rating - DC	Voltage Rating - AC	Pretravel	Pretravel	Switch Function	Operating Force	Operating Position	Operating Force [Min]	Operating Force [Max]	Differential Travel

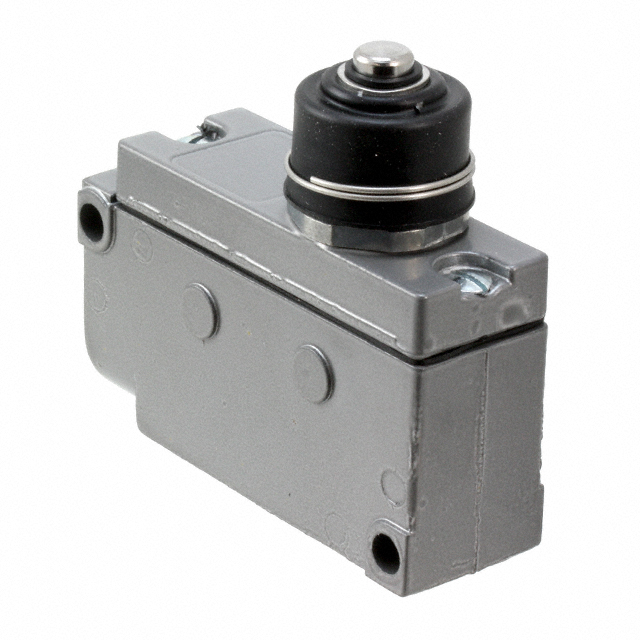

Honeywell Sensing and Control EMEA BZE7-2RN-C	5.6 mm	0.219 "	Screw Terminal	Chassis Mount	IP65 - Dust Tight Water Resistant	10000000 Cycles	SPDT	0.05 mm	0.002 in	15 A 500 mA	Round (Pin Plunger)	-30 ░C	71 °C	113 gf	125 VDC	125 V	2 mm	0.078 in	On-Mom

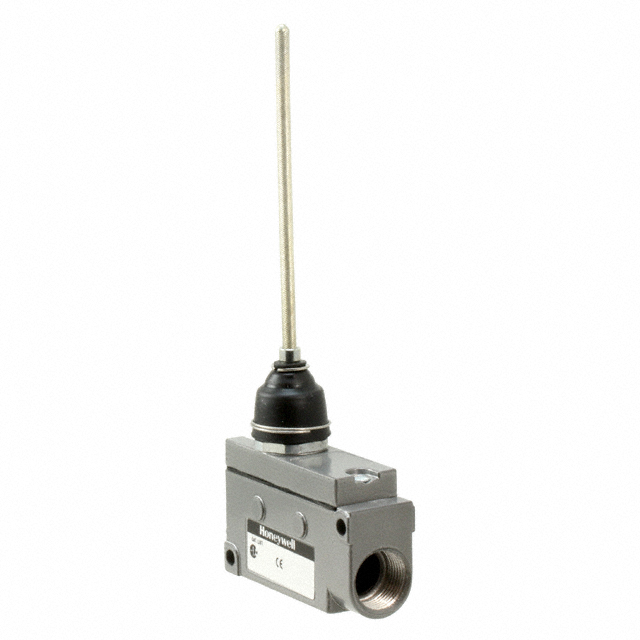

Honeywell Sensing and Control EMEA BZE7-2RN18-C			Screw Terminal	Chassis Mount	IP65 - Dust Tight Water Resistant	10000000 Cycles	SPDT			15 A 500 mA	Coil Spring	-30 ░C	71 °C		125 VDC	125 V		15 °	On-Mom	198 gf	15 °

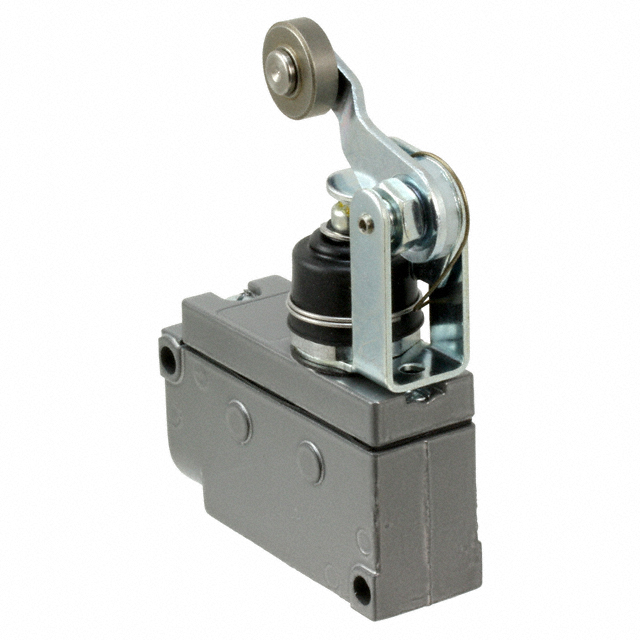

Honeywell Sensing and Control EMEA BZE7-2RN2-C	5.6 mm	0.219 "	Screw Terminal	Chassis Mount	IP65 - Dust Tight Water Resistant	10000000 Cycles	SPDT	0.006 in		15 A 500 mA	Lever Roller	-30 ░C	71 °C	170 gf	125 VDC	125 V	4.8 mm	0.188 in	On-Mom			283 gf	567 gf	0.15 mm
