7219-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

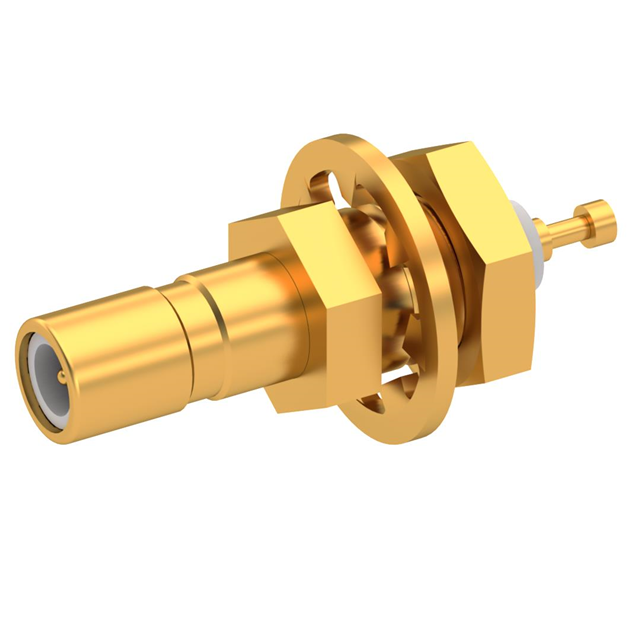

SSMB M STR BHD TUR
| Part | Body Finish | Center Contact Plating | Body Material | Mating Cycles | Dielectric Material | Includes | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Number of Ports | Fastening Type | Center Contact Material | Connector Type | Mounting Type | Contact Termination | Housing Color | Impedance | Shield Termination | Connector Style | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | Brass | 500 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | 250 V | -65 ░C | 165 °C | 12.4 GHz | 1 | Snap-On | Beryllium Copper | Jack Male Pin | Panel Mount | Solder | Gold | 50 Ohms | Solder | SSMB | Bulkhead - Rear Side Nut |
