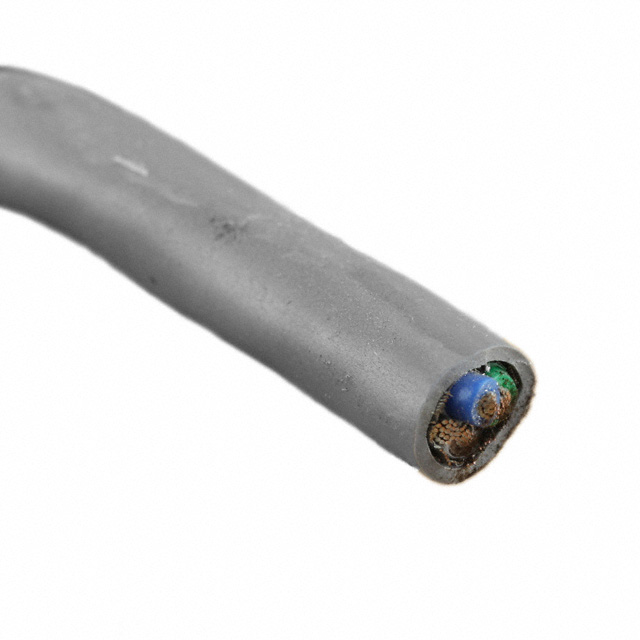

5173/1C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 3COND 16AWG BLK SHLD 1000'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Features | Shield Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Voltage | Cable Type | Conductor Material | Number of Conductors | Ratings | Jacket Color | Conductor Strand [custom] | Conductor Strand [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Poly-Vinyl Chloride (PVC) | 7.42 mm | 0.292 in | 304.8 m | 1000 ft | -35 °C | 105 ░C | 16 AWG | Biological Compatibility Drain Wire Rip Cord | Braid Foil | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Communication Control | 300 VDC | Multi-Conductor | Copper Tinned | 3 | ISO 10993 UL Style 2464 | Black | 19 | 0.0117 in | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Poly-Vinyl Chloride (PVC) | 7.42 mm | 0.292 in | -35 °C | 105 ░C | 16 AWG | Biological Compatibility Drain Wire Rip Cord | Braid Foil | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Communication Control | 300 VDC | Multi-Conductor | Copper Tinned | 3 | ISO 10993 UL Style 2464 | Slate | 19 | 0.0117 in | 100 ft | 30.5 m |
