NCP105 Series

LDO Regulator, 150 mA, High PSRR, High Accuracy

Catalog

LDO Regulator, 150 mA, High PSRR, High Accuracy

Part	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	PSRR	Mounting Type	Supplier Device Package	Current - Output	Package / Case	Protection Features	Output Type	Output Configuration	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Regulators	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]

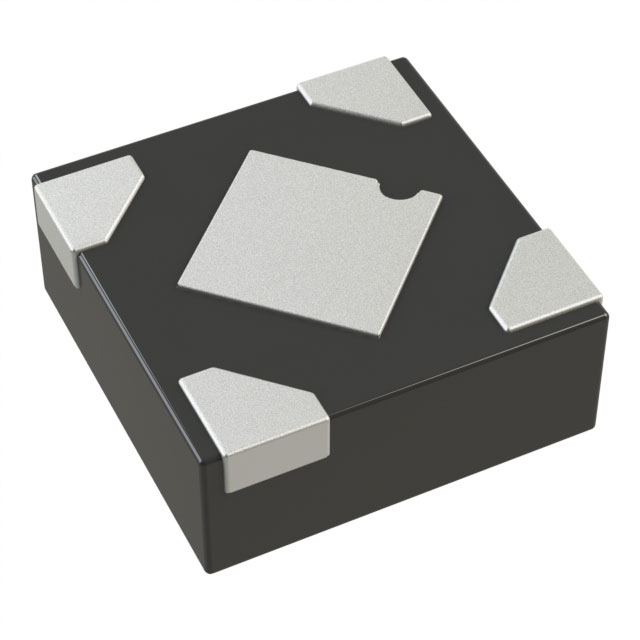

ON Semiconductor NCP105AMX345TCG	5.5 V	3.45 V	70 dB	Surface Mount	4-XDFN (1x1)	150 mA	4-XDFN Exposed Pad	Current Limit	1.81 mOhm	Positive	Enable	-40 °C	85 °C	1	95 µA
ON Semiconductor NCP105AMX180TCG	5.5 V	1.8 V	70 dB	Surface Mount	4-XDFN (1x1)	150 mA	4-XDFN Exposed Pad	Current Limit	1.81 mOhm	Positive	Enable	-40 °C	85 °C	1	95 µA	0.33 V
ON Semiconductor NCP105AMX120TCG	5.5 V	1.2 V	70 dB	Surface Mount	4-XDFN (1x1)	150 mA	4-XDFN Exposed Pad	Current Limit	1.81 mOhm	Positive	Enable	-40 °C	85 °C	1	95 µA

Catalog

LDO Regulator, 150 mA, High PSRR, High Accuracy

Key Features

• Operating Input Voltage Range: 1.7 V to 5.5 V

• Low Dropout: 125 mV Typical at 150 mA @ 2.8 V

• High PSRR 70dB at 1kHz

• Thermal Shutdown and Current Limit Protections

• Very Low Quiescent Current of Typ. 50 µA

• Available in XDFN4 1.0 x 1.0 mm Package

• +/- 1% typical Vout Accuracy @25 °C

• Available in TSOP5 Package

Description

The NCP105 is 150 mA LDO that provides a very stable, accurate voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the NCP105 employs the dynamic quiescent current adjustment for very low IQ consumption at no−load. The NCP105 is offered in both a small XDFN-4 1 mmx1 mm, 0.4mm Thin package as well as in a standard TSOP5 package.
