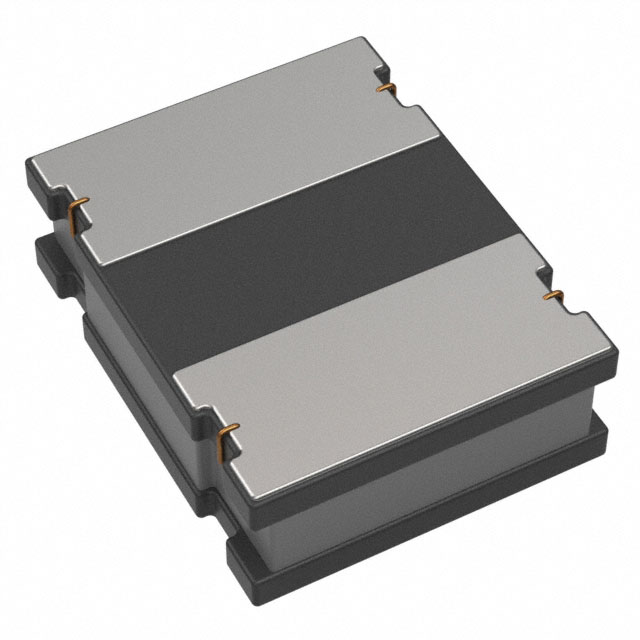

SDET32251E Series

Catalog

FIXED IND 15UH 700MA 700MOHM SMD

Part	Tolerance	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max)	Supplier Device Package	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Inductance Frequency - Test	Shielding	Inductance	Package / Case	Package / Case	Mounting Type	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec SDET32251E-150MS	20 %	Metal	0.059 "	1.5 mm	1210	700 mA	2.5 mm	0.098 in	3.2 mm	0.126 "	900 mA	-55 C	125 °C	700 mOhm	1 MHz	Unshielded	15 µH	1210	3225 Metric	Surface Mount
Delta Electronics/Cyntec SDET32251E-4R7MS	20 %	Metal	0.059 "	1.5 mm	1210	1.9 A	2.5 mm	0.098 in	3.2 mm	0.126 "	1.17 A	-55 C	125 °C		1 MHz	Unshielded	4.7 ÁH	1210	3225 Metric	Surface Mount	108 mOhm
Delta Electronics/Cyntec SDET32251E-3R3MS	20 %	Metal	0.059 "	1.5 mm	1210	2.1 A	2.5 mm	0.098 in	3.2 mm	0.126 "	1.2 A	-55 C	125 °C	102 mOhm	1 MHz	Unshielded	3.3 µH	1210	3225 Metric	Surface Mount
