R475N Series
Manufacturer: KEMET
Beta
⌘K

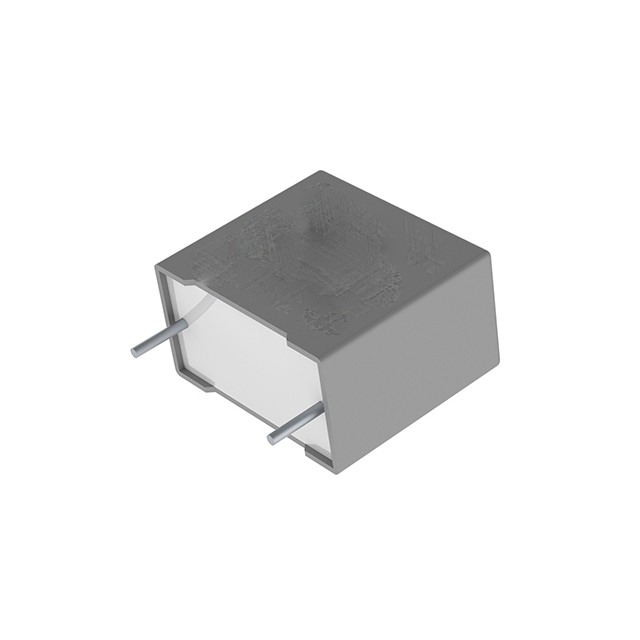

CAP FILM 0.1UF 10% 1KVDC RADIAL
| Part | Termination | Package / Case | Ratings | Voltage Rating - DC | Voltage Rating - DC | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Dielectric Material | Voltage Rating - AC | Mounting Type | Tolerance | Lead Spacing | Lead Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | PC Pins | Radial | AEC-Q200 X2 | 1 kV | 1 kVDC | 16.1 mm | 0.634 " | Polypropylene (PP) Metallized | 520 V | Through Hole | 10 % | 0.886 in | 22.5 mm | 85 °C | -40 C | Automotive EMI RFI Suppression | 7 mm | 26.5 mm | 0.276 in | 1.043 in | 100000 pF |
 KEMET | PC Pins | Radial | AEC-Q200 X2 | 1 kV | 1 kVDC | Polypropylene (PP) Metallized | 520 V | Through Hole | 10 % | 0.886 in | 22.5 mm | 85 °C | -40 C | Automotive EMI RFI Suppression | 11 mm | 26.5 mm | 0.433 in | 1.043 in | 0.22 µF |
