6275-0 Series

Catalog

RECEPTACLE WITH A STANDARD TAIL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Material	Length - Overall [x]	Length - Overall [x]	Tail Type	Mounting Hole Diameter	Mounting Hole Diameter	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]

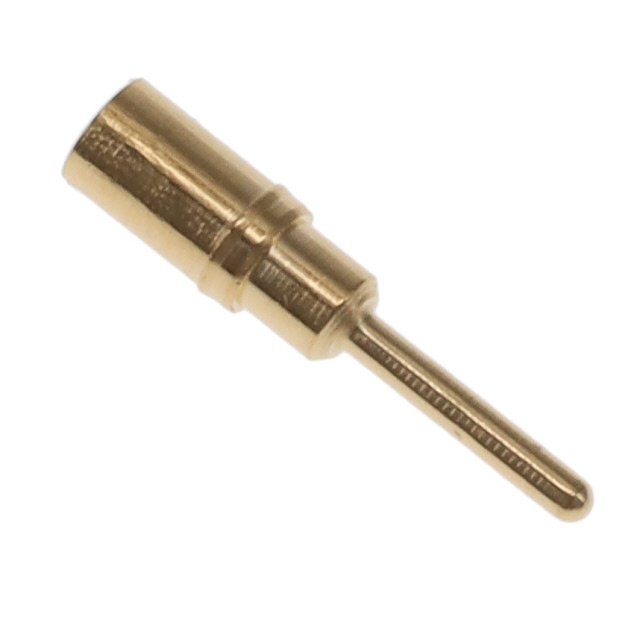

Mill-Max Manufacturing Corp. 6275-0-15-15-15-27-04-0	-55 C	125 °C	0.057 in	1.45 mm	Solder	Gold	0.51 mm	0.02 in	30 Áin	0.76 Ám	0.047 in	1.19 mm	2.85 mm	0.112 in	Beryllium Copper	0.275 in	6.99 mm	Standard Tail	1.37 mm	0.054 in	0.51 mm	0.02 in	0.81 mm	0.032 "
