9836 Series
Manufacturer: Belden Inc.
Beta
⌘K

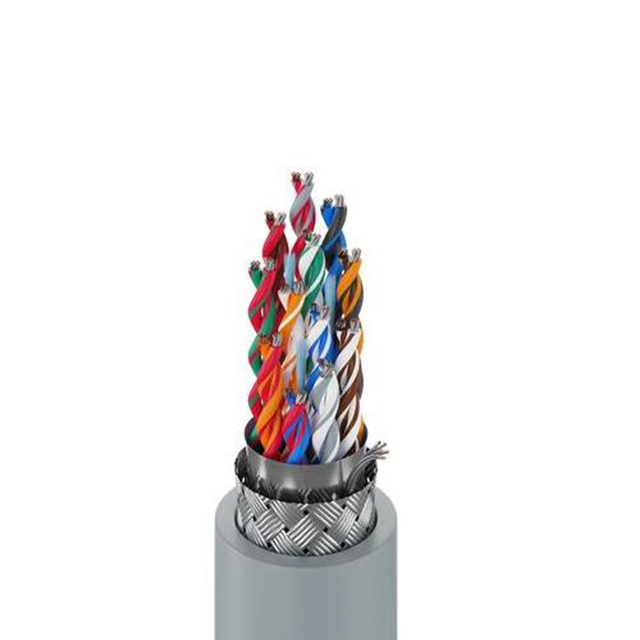

MULTI-PAIR 24COND 24AWG
| Part | Shield Coverage | Shield Material | Ratings | Shield Type | Jacket Color | Features | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Material | Usage | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | UL Style 2919 | Braid Foil | Chrome | Drain Wire | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Multi-Pair | Copper Tinned | Computer | 304.8 m | 1000 ft | 7 | 32 AWG | 80 °C | -30 ░C | 24 | 11.79 mm | 0.464 in | 24 AWG | Polyethylene (PE) |
