UF225 Series

Catalog

FAN IMP MTRZD 225X85MM 115VAC

Part	Material - Blade	Material - Frame	Width [y]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Bearing Type	Weight [custom]	Weight [custom]	Fan Type	Size / Dimension [diameter]	Termination	Voltage - Rated	Weight	Weight	RPM	Size / Dimension	Noise	Static Pressure	Static Pressure	Power (Watts)	Air Flow	Air Flow	Current Rating (Amps)

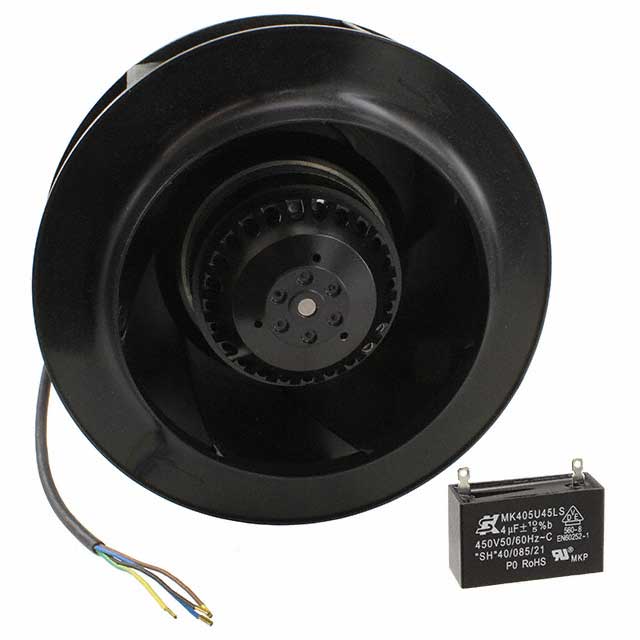

Mechatronics Fan Group UF225(85)APA12-H1C2F	Polyamide (PA) Nylon	Aluminum	85 mm	CE cUL TUV UL	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	2.3 kg	5 lbs	Motorized Impellers	225 mm	4 Wire Leads	115 VAC

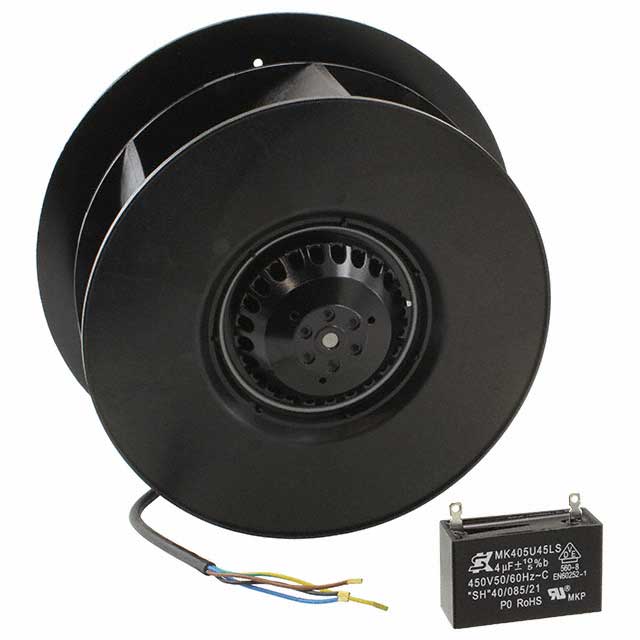

Mechatronics Fan Group UF225(99)APA12-H1C2F	Polyamide (PA) Nylon	Aluminum	117 mm	CE cUL TUV UL	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball			Motorized Impellers	259 mm	4 Wire Leads	115 VAC	5.7 lbs	2.6 kg	2950 RPM	Round	71 dB(A)	2.6 in H2O	647.7 Pa	160 W	547 CFM	15.32 m³/min
Mechatronics Fan Group UF225(99)APA12-H1C2A	Polyamide (PA) Nylon	Aluminum	99 mm	CE cUL TUV UL	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	2.3 kg	5 lbs	Motorized Impellers	225 mm	4 Wire Leads	115 VAC			2950 RPM		71 dB(A)	2.6 in H2O	647.7 Pa	160 W	770 CFM	21.56 m³/min
Mechatronics Fan Group UF225(85)APA23-H1C2A	Polyamide (PA) Nylon	Aluminum	85 mm	CE cUL TUV UL	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	2.3 kg	5 lbs	Motorized Impellers	225 mm	4 Wire Leads	230 VAC			3000 RPM		75 dB(A)	2.5 in H2O	622.7 Pa	135 W	680 CFM	19.04 mł/min	600 mA

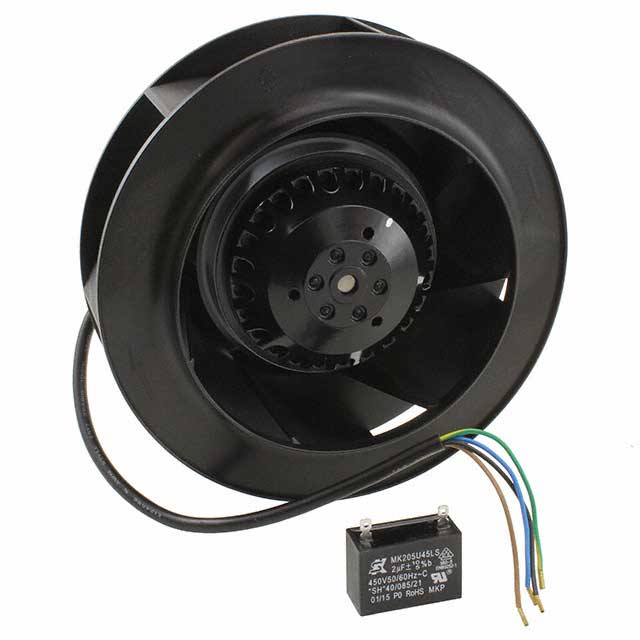

Mechatronics Fan Group UF225(69)APA23-H1C2A	Polyamide (PA) Nylon	Aluminum	69 mm	CE cUL TUV UL	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	2.3 kg	5 lbs	Motorized Impellers	225 mm	4 Wire Leads	230 VAC			2950 RPM		72 dB(A)	2.305 in H2O	574.2 Pa	125 W	550 CFM	15.4 m³/min	0.56 A
Mechatronics Fan Group UF225(85)APA12-H1C2A	Polyamide (PA) Nylon	Aluminum	85 mm	CE cUL TUV UL	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	2.3 kg	5 lbs	Motorized Impellers	225 mm	4 Wire Leads	115 VAC			3000 RPM		75 dB(A)	2.5 in H2O	622.7 Pa	135 W	680 CFM	19.04 mł/min	1.2 A

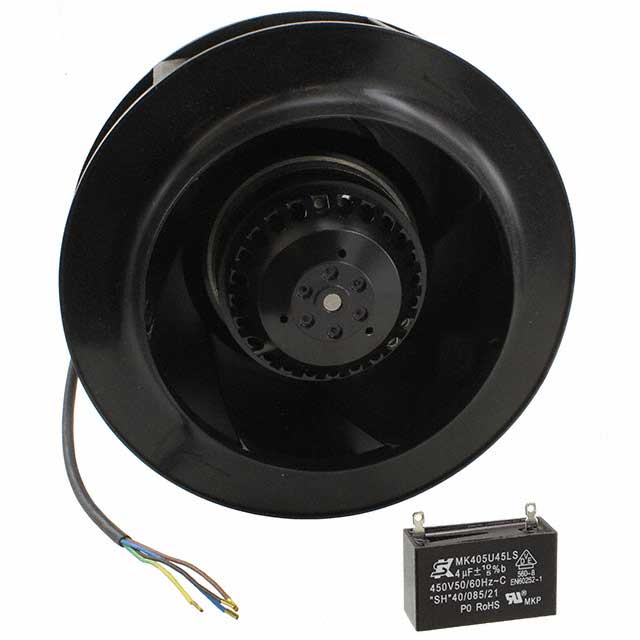

Mechatronics Fan Group UF225(99)APA23-H1C2A	Polyamide (PA) Nylon	Aluminum	99 mm	CE cUL TUV UL	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	2.3 kg	5 lbs	Motorized Impellers	225 mm	4 Wire Leads	230 VAC			2950 RPM		71 dB(A)	2.6 in H2O	647.7 Pa	157 W	770 CFM	21.56 m³/min	0.7 A

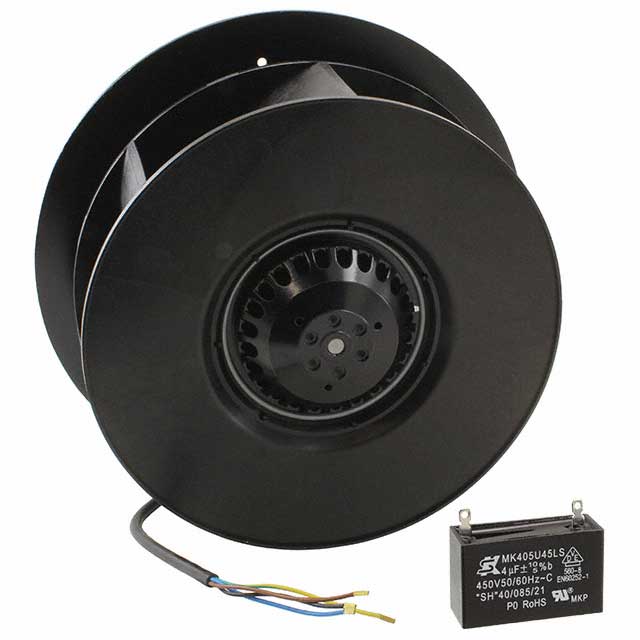

Mechatronics Fan Group UF225(99)APA23-H1C2F	Polyamide (PA) Nylon	Aluminum	117 mm	CE cUL TUV UL	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball			Motorized Impellers	259 mm	4 Wire Leads	230 VAC	5.7 lbs	2.6 kg	2950 RPM	Round	71 dB(A)	2.6 in H2O	647.7 Pa	157 W	547 CFM	15.32 m³/min	0.7 A
