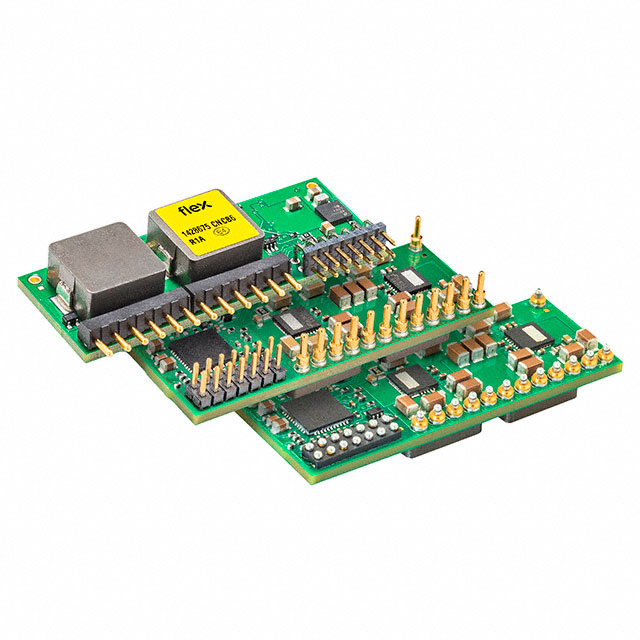

BMR465 Series

Catalog

DC DC CONVERTER 0.6-1.8V 162W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Mounting Type	Standard Number	Power (Watts)	Current - Output (Max) [Max]	Type	Number of Outputs	Efficiency	Applications	Features	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Approval Agency	Control Features
Flex Power Modules BMR4650010/001	-40 °C	150 °C	14 V	Through Hole	62368-1	162 W	90 A	Non-Isolated PoL Module Digital	1	94.3 %	ITE (Commercial)	Adjustable Output PMBus™ Remote Sense	7.5 V	0.6 V	1.8 V	0.75 in	10 mm	2 in	0.39 "	50.8 mm	19.1 mm	26-DIP Module	CB CSA IEC TUV UL
Flex Power Modules BMR4651010/001	-40 °C	150 °C	14 V	Surface Mount	62368-1	162 W	90 A	Non-Isolated PoL Module Digital	1	94.3 %	ITE (Commercial)	Adjustable Output PMBus™ Remote Sense	7.5 V	0.6 V	1.8 V	0.75 in	10 mm	2 in	0.39 "	50.8 mm	19.1 mm	26-SMD Module	CB CSA IEC TUV UL
Flex Power Modules BMR4652010/001	-40 °C	150 °C	14 V	Through Hole	62368-1	162 W	90 A	Non-Isolated PoL Module Digital	1	94.3 %	ITE (Commercial)	Adjustable Output PMBus™ Remote On/Off Remote Sense	7.5 V	0.6 V	1.8 V	0.37 in	19.1 mm	2 in	0.75 "	50.8 mm	9.5 mm	26-SIP Module	CB CSA IEC TUV UL	Active High Enable
