725-052 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 52POS 0.100

Part	Material - Insulation	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions	Number of Positions/Bay/Row	Number of Rows	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination	Contact Finish	Contact Type	Mounting Type	Pitch	Pitch	Card Type	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 725-052-541-101	Polyester Thermoplastic	1	30 Áin	0.76 Ám	Single	52	52	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge
EDAC Inc. 725-052-522-101	Polyester Thermoplastic	1	30 Áin	0.76 Ám	Single	52	52	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge

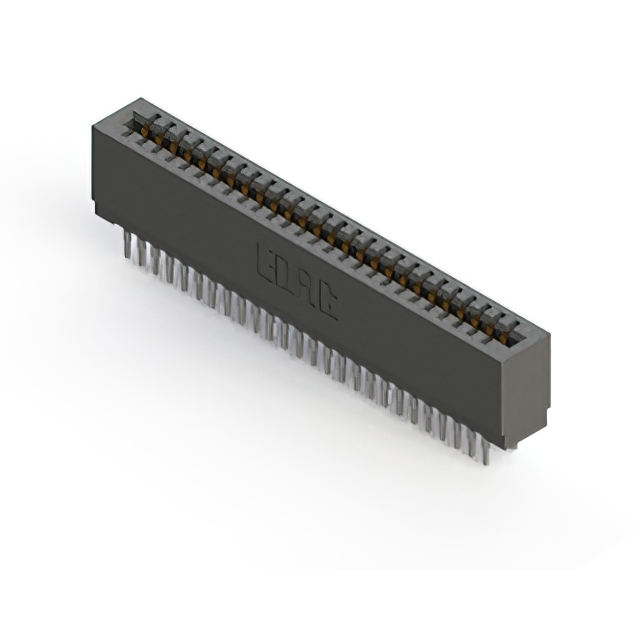

EDAC Inc. 725-052-545-201	Polyester Thermoplastic		30 Áin	0.76 Ám	Dual	52	26		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	2	2

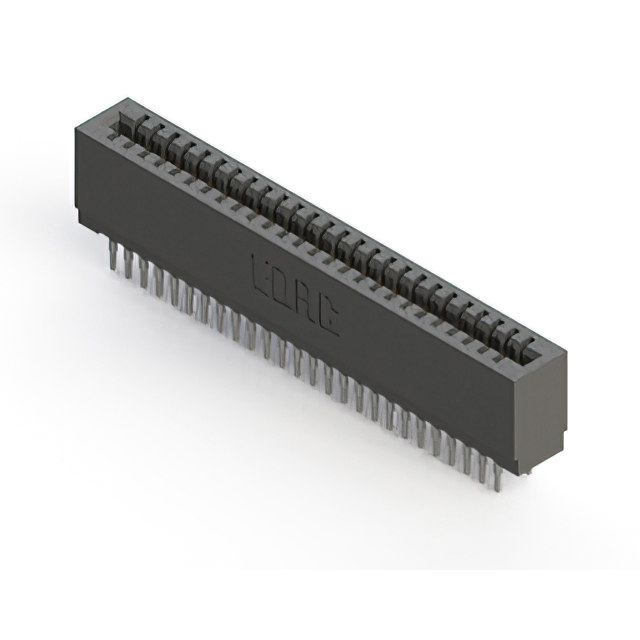

EDAC Inc. 725-052-522-201	Polyester Thermoplastic		30 Áin	0.76 Ám	Dual	52	26		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	2	2
EDAC Inc. 725-052-525-201	Polyester Thermoplastic		30 Áin	0.76 Ám	Dual	52	26		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	2	2

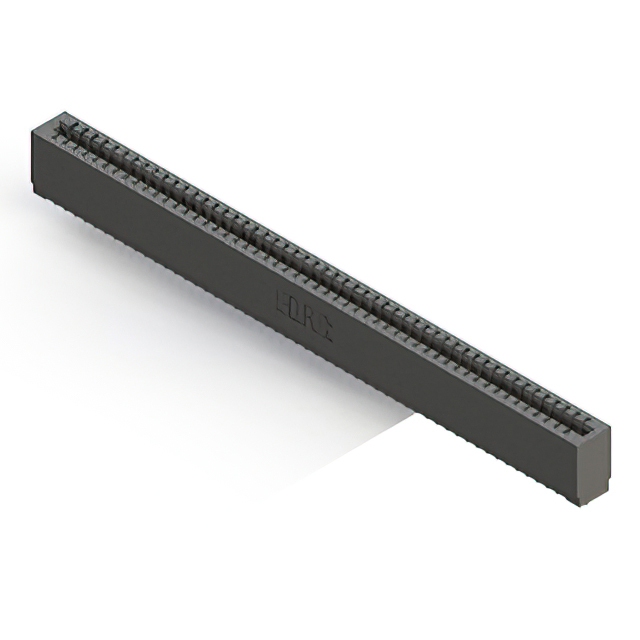

EDAC Inc. 725-052-520-101	Polyester Thermoplastic	1	30 Áin	0.76 Ám	Single	52	52	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge

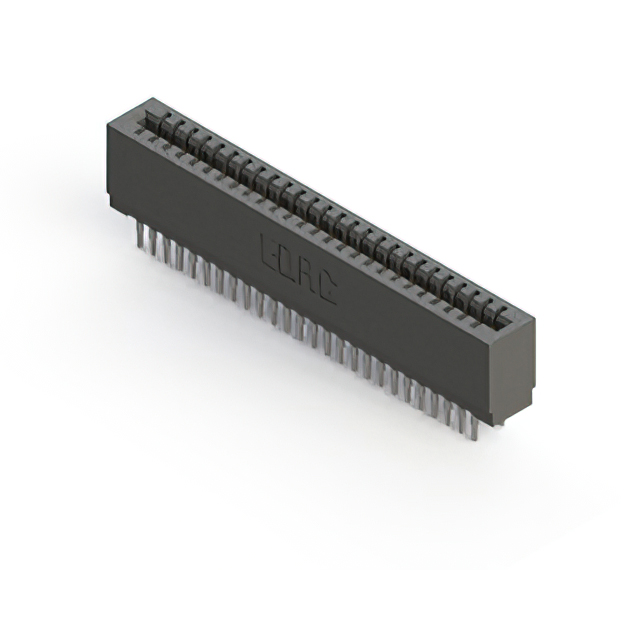

EDAC Inc. 725-052-541-201	Polyester Thermoplastic		30 Áin	0.76 Ám	Dual	52	26		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Dual Edge	2	2
EDAC Inc. 725-052-540-101	Polyester Thermoplastic	1	30 Áin	0.76 Ám	Single	52	52	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge
EDAC Inc. 725-052-545-101	Polyester Thermoplastic	1	30 Áin	0.76 Ám	Single	52	52	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit Wire Wrap	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge
EDAC Inc. 725-052-525-101	Polyester Thermoplastic	1	30 Áin	0.76 Ám	Single	52	52	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	-40 C	105 ░C	Black	Press-Fit	Gold	Cantilever	Through Hole	0.1 "	2.54 mm	Non Specified - Single Edge
