178803 Series

Catalog

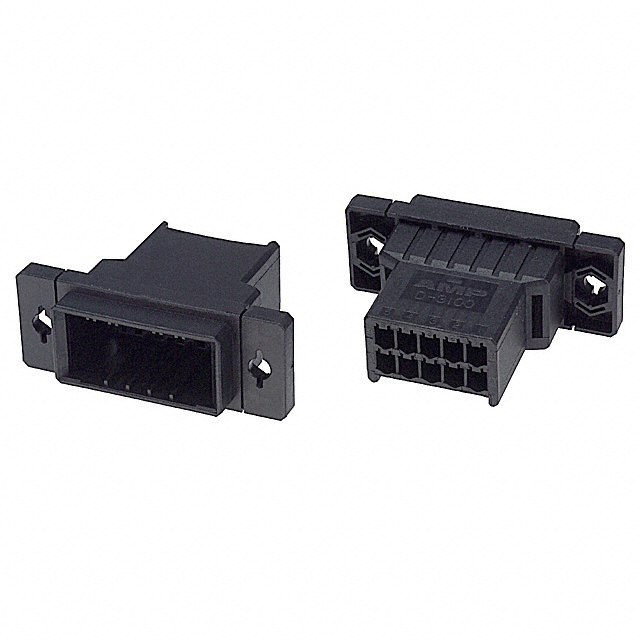

(178803-5) 3.81 DYNAMIC CAP HS PANEL 10P

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Material	Features	Contact Termination	Note	Number of Rows	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Number of Positions	Fastening Type	Connector Type	Number of Positions
TE Connectivity Raychem Cable Protection 178803-5	Black	105 ░C	-55 °C	Tab	Glass Filled Polyester Thermoplastic	Mounting Flange	Crimp	Contacts Not Included	2	0.15 in	3.81 mm	5.08 mm	0.2 in	10	Push-Pull	Plug

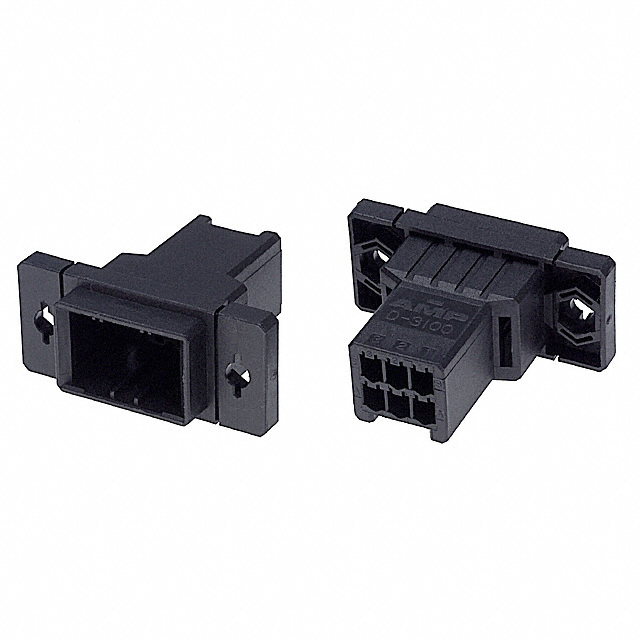

TE Connectivity Raychem Cable Protection 178803-3	Black	105 ░C	-55 °C	Tab	Glass Filled Polyester Thermoplastic	Mounting Flange	Crimp	Contacts Not Included	2	0.15 in	3.81 mm	5.08 mm	0.2 in	6	Push-Pull	Plug
TE Connectivity Raychem Cable Protection 178803-7	Black	105 ░C	-55 °C	Tab	Glass Filled Polyester Thermoplastic	Mounting Flange	Crimp	Contacts Not Included	2	0.15 in	3.81 mm	5.08 mm	0.2 in		Push-Pull	Plug	16
TE Connectivity Raychem Cable Protection 178803-6	Black	105 ░C	-55 °C	Tab	Glass Filled Polyester Thermoplastic	Mounting Flange	Crimp	Contacts Not Included	2	0.15 in	3.81 mm	5.08 mm	0.2 in	12	Push-Pull	Plug
