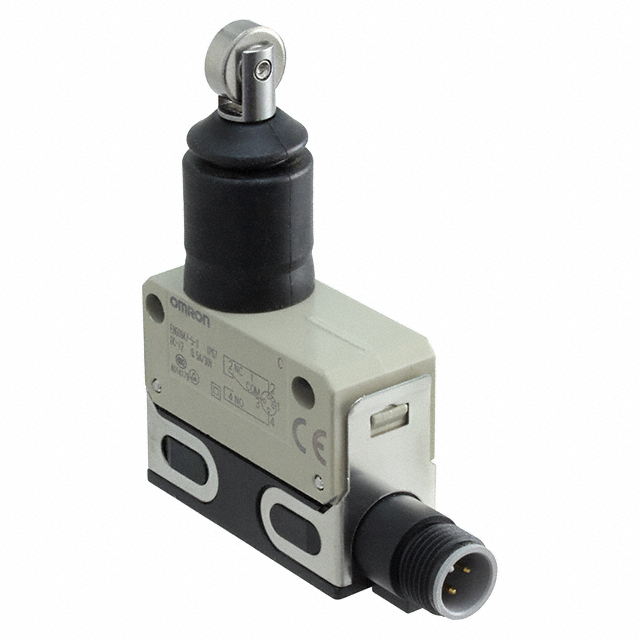

D4E-1E10 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 1A 125V
| Part | Ingress Protection | Mechanical Life | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Overtravel | Overtravel | Pretravel | Pretravel | Operating Position | Operating Position | Mounting Type | Actuator Type | Voltage Rating - AC | Release Force | Operating Temperature [Min] | Operating Temperature [Max] | Differential Travel | Differential Travel | Operating Force | Circuit | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | IP67 - Dust Tight Waterproof | 10000000 Cycles | On-Mom | 1 A | 30 V | 0.118 " | 3 mm | 0.06 in | 1.5 mm | 41.3 mm | 1.625 " | Chassis Mount | Roller Plunger | 125 V | 500 gf | -10 °C | 80 °C | 0.1 mm | 0.004 in | 1200 gf | SPDT | Connector |
