FFB1748 Series
Manufacturer: Delta Electronics
Beta
⌘K

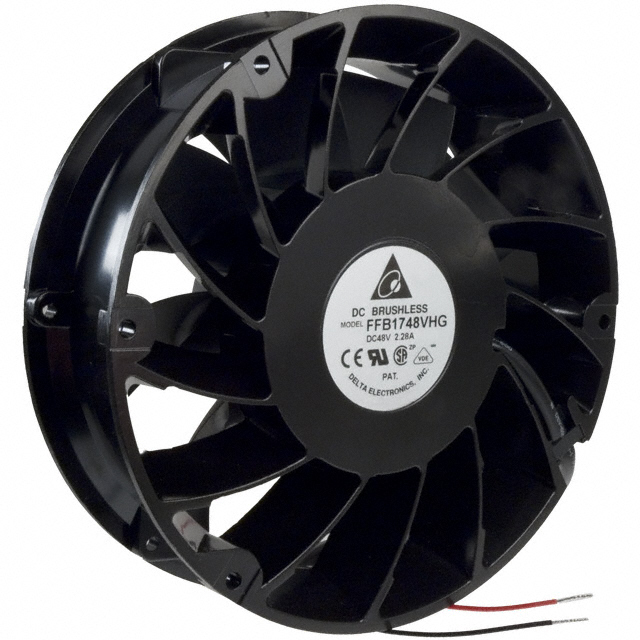

FAN AXIAL 172X50.8MM 48VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Material - Frame | Noise | Voltage - Rated | Approval Agency | Fan Type | Bearing Type | Size / Dimension [diameter] | Size / Dimension | Termination | Width [y] | RPM | Air Flow | Air Flow | Static Pressure | Static Pressure | Weight | Weight | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 26 VDC | 54 VDC | Plastic | 1.9 A | Aluminum | 72 dB(A) | 48 VDC | CE CSA UL VDE | Tubeaxial | Ball | 172 mm | Round | 2 Wire Leads | 50.8 mm | 4600 RPM | 12.12 m³/min | 432.8 CFM | 393.1 Pa | 1.578 in H2O | 2.1 lb | 952.5 g | 91.2 W |
