G823J20 Series

Catalog

BOX HEADER FOR USB 3.0,2.0MM PIT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Shrouding	Material Flammability Rating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Fastening Type	Connector Type	Style	Number of Rows [custom]	Insulation Color	Current Rating (Amps)	Number of Positions	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Material	Termination	Contact Finish - Mating	Contact Shape	Mounting Type

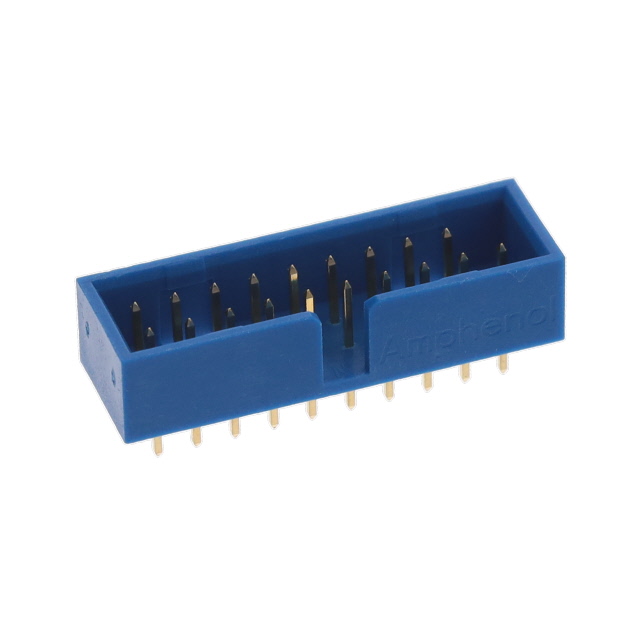

Amphenol ICC (Commercial Products) G823J201240BHR	15 µin	0.38 µm	85 °C	-25 °C	2 mm	0.079 in	4 mm	0.157 in	All	Shrouded - 4 Wall	UL94 V-0	Keying Slot	0.38 µm	15 µin	0.197 "	5 mm	Push-Pull	Header	Board to Cable/Wire	2	Blue	1.5 A	19	Gold	0.079 "	2 mm	Male Pin	2.5 mm	0.098 in	Copper Alloy	Nylon 9T Polyamide (PA9T)	Solder	Gold	Square	Through Hole
