INA199-Q1 Series

AEC-Q100, 26V, bi-directional current sense amplifier

Catalog

AEC-Q100, 26V, bi-directional current sense amplifier

Part	Function	Primary Attributes	Supplied Contents	Type	Utilized IC / Part	Sensing Method	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Accuracy	Voltage - Input [Min]	Voltage - Input [Max]

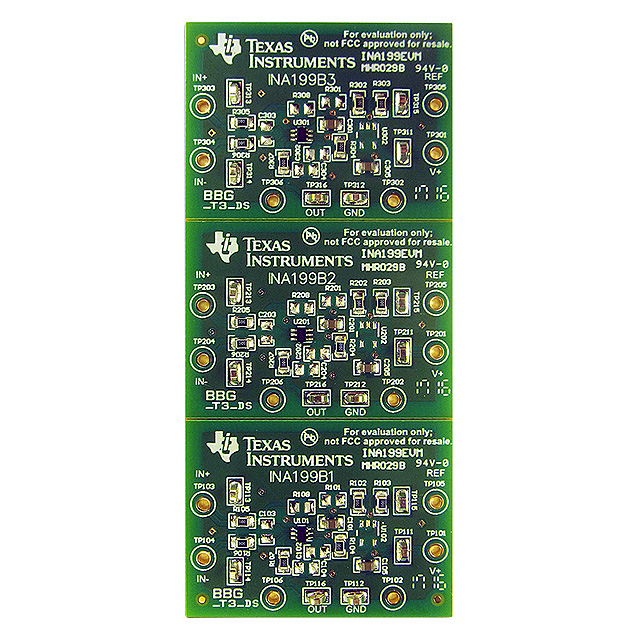

Texas Instruments INA199EVM	Current Monitor	Current Shunt Monitor	Board(s)	Power Management	INA199
Texas Instruments INA199B2RSWT	Current Sense					High/Low-Side	10-UFQFN	Surface Mount	125 °C	-40 °C	1.8	10-UQFN	1.4	1.5 %	-1 V	26 V
Texas Instruments INA199B3RSWT	Current Sense					High/Low-Side	10-UFQFN	Surface Mount	125 °C	-40 °C	1.8	10-UQFN	1.4	1.5 %	-1 V	26 V
Texas Instruments INA199C1DCKT	Current Sense					High/Low-Side	6-TSSOP SC-88 SOT-363	Surface Mount	125 °C	-40 °C		SC-70-6		1 %	-1 V	26 V
Texas Instruments INA199C3RSWT	Current Sense					High/Low-Side	10-UFQFN	Surface Mount	125 °C	-40 °C	1.8	10-UQFN	1.4	1 %	-1 V	26 V
Texas Instruments INA199B1DCKR	Current Sense					High/Low-Side	6-TSSOP SC-88 SOT-363	Surface Mount	125 °C	-40 °C		SC-70-6		1.5 %	-1 V	26 V
Texas Instruments INA199A2RSWR	Current Sense					High/Low-Side	10-UFQFN	Surface Mount	125 °C	-40 °C	1.8	10-UQFN	1.4	1.5 %	-1.5 V	26 V
Texas Instruments INA199A1DCKT	Current Sense					High/Low-Side	6-TSSOP SC-88 SOT-363	Surface Mount	125 °C	-40 °C		SC-70-6		1.5 %	-1.5 V	26 V
Texas Instruments INA199A2DCKT	Current Sense					High/Low-Side	6-TSSOP SC-88 SOT-363	Surface Mount	125 °C	-40 °C		SC-70-6		1.5 %	-1.5 V	26 V
Texas Instruments INA199A1RSWT	Current Sense					High/Low-Side	10-UFQFN	Surface Mount	125 °C	-40 °C	1.8	10-UQFN	1.4	1.5 %	-1.5 V	26 V

Key Features

• AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system designWide common-mode range: –0.1 V to 26 VOffset voltage: ±150 µV (maximum) (enables shunt drops of 10-mV full-scale)Accuracy:Gain error (maximum over temperature):±1% (C version)±1.5% (B version)Offset drift: 0.5-µV/°C (maximum)Gain drift: 10-ppm/°C (maximum)Choice of gains:INA199x1-Q1: 50 V/VINA199x2-Q1: 100 V/VINA199x3-Q1: 200 V/VQuiescent current: 100 µA (maximum)Package: 6-pin SC70AEC-Q100 qualified for automotive applications:Temperature grade 1: –40°C to 125°C, TAFunctional Safety-CapableDocumentation available to aid functional safety system designWide common-mode range: –0.1 V to 26 VOffset voltage: ±150 µV (maximum) (enables shunt drops of 10-mV full-scale)Accuracy:Gain error (maximum over temperature):±1% (C version)±1.5% (B version)Offset drift: 0.5-µV/°C (maximum)Gain drift: 10-ppm/°C (maximum)Choice of gains:INA199x1-Q1: 50 V/VINA199x2-Q1: 100 V/VINA199x3-Q1: 200 V/VQuiescent current: 100 µA (maximum)Package: 6-pin SC70

Description
