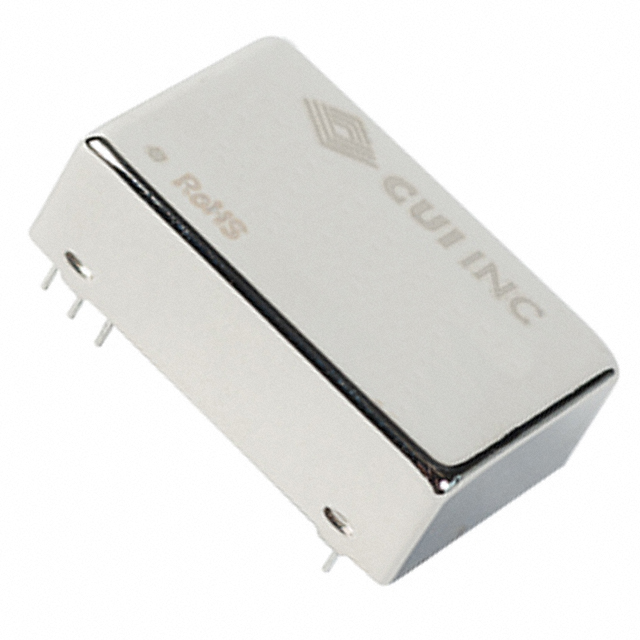

VAWQ12 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 3.3V 12W

Part	Mounting Type	Features	Voltage - Isolation	Control Features	Voltage - Output 1	Power (Watts)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
CUI Inc. VAWQ12-Q48-S3R3	Through Hole	OVP Remote On/Off SCP UVLO	1.5 kV	Active High Enable	3.3 V	12 W	Isolated Module	85 °C	-40 C	85 %	75 V	ITE (Commercial)	18 V	24-DIP Module	1	3.5 A	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in
CUI Inc. VAWQ12-Q48-S5	Through Hole	OVP Remote On/Off SCP UVLO	1.5 kV	Active High Enable	5 V	12 W	Isolated Module	85 °C	-40 C	87 %	75 V	ITE (Commercial)	18 V	24-DIP Module	1	2.4 A	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in
CUI Inc. VAWQ12-Q48-S15	Through Hole	OVP Remote On/Off SCP UVLO	1.5 kV	Active High Enable	15 V	12 W	Isolated Module	85 °C	-40 C	88 %	75 V	ITE (Commercial)	18 V	24-DIP Module	1	0.8 A	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in
CUI Inc. VAWQ12-Q24-S15	Through Hole	OVP Remote On/Off SCP UVLO	1.5 kV	Active High Enable	15 V	12 W	Isolated Module	85 °C	-40 C	86 %	36 V	ITE (Commercial)	9 V	24-DIP Module	1	0.8 A	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in
CUI Inc. VAWQ12-Q24-S12	Through Hole	OVP Remote On/Off SCP UVLO	1.5 kV	Active High Enable	12 V	12 W	Isolated Module	85 °C	-40 C	86 %	36 V	ITE (Commercial)	9 V	24-DIP Module	1	1 A	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in
CUI Inc. VAWQ12-Q48-S12	Through Hole	OVP Remote On/Off SCP UVLO	1.5 kV	Active High Enable	12 V	12 W	Isolated Module	85 °C	-40 C	87 %	75 V	ITE (Commercial)	18 V	24-DIP Module	1	1 A	1.26 in	0.79 in	10.8 mm	20 mm	32 mm	0.43 in
