MN13TN Series

Catalog

SWITCH ROCKER MINI FLAT FRAME

Part	Mechanical Life	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Actuator Type	Approval Agency	Mounting Type	Voltage Rating - DC	Color - Actuator/Cap	Circuit	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches MN13TNW01-EA	50000 Cycles	25000 Steps	3 A 6 A	125 V	Solder Lug	10.1 mm	17.8 mm	No Marking	Paddle	UL	Flange Panel Mount	30 V	Black	SPDT	On-Off-On	85 °C	-30 ░C
NKK Switches MN13TNW01-GB	50000 Cycles	25000 Steps	3 A 6 A	125 V	Solder Lug	12.4 mm	0.5 in	No Marking	Paddle	UL	Flange Panel Mount	30 V	White	SPDT	On-Off-On	85 °C	-30 ░C

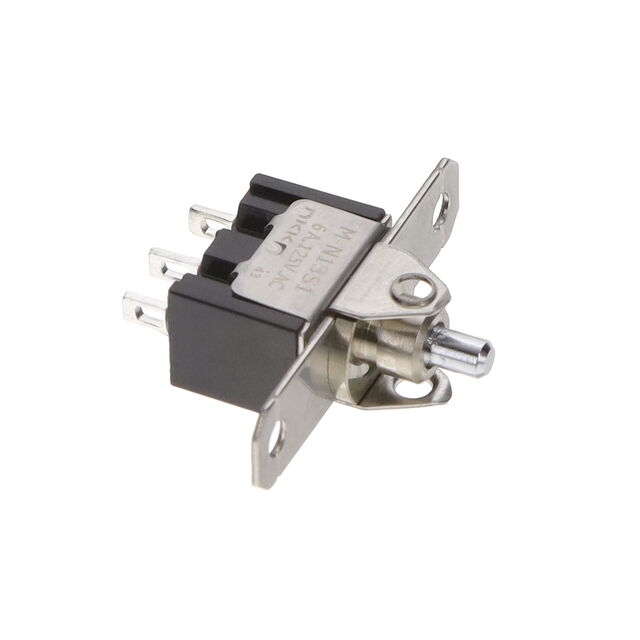

NKK Switches MN13TNW01	50000 Cycles	25000 Steps	3 A 6 A	125 V	Solder Lug	12.4 mm	0.5 in	No Marking	Actuator Arm Cap Required	UL	Flange Panel Mount	30 V		SPDT	On-Off-On	85 °C	-30 ░C
NKK Switches MN13TNW01-DB	50000 Cycles	25000 Steps	3 A 6 A	125 V	Solder Lug	10.1 mm	17.8 mm	No Marking	Concave	UL	Flange Panel Mount	30 V	White	SPDT	On-Off-On	85 °C	-30 ░C
NKK Switches MN13TNW03-FB
NKK Switches MN13TNW01-EB	50000 Cycles	25000 Steps	3 A 6 A	125 V	Solder Lug	10.1 mm	17.8 mm	No Marking	Paddle	UL	Flange Panel Mount	30 V	White	SPDT	On-Off-On	85 °C	-30 ░C
NKK Switches MN13TNW03
NKK Switches MN13TNG03-DA
NKK Switches MN13TNW01-FA	50000 Cycles	25000 Steps	3 A 6 A	125 V	Solder Lug	12.4 mm	0.5 in	No Marking	Concave	UL	Flange Panel Mount	30 V	Black	SPDT	On-Off-On	85 °C	-30 ░C
NKK Switches MN13TNG03-EA
