ASR-SID Series

Catalog

SSR RELAY SPST-NO 25A 24-530V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Load Current	Package / Case	Output Type	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Circuit

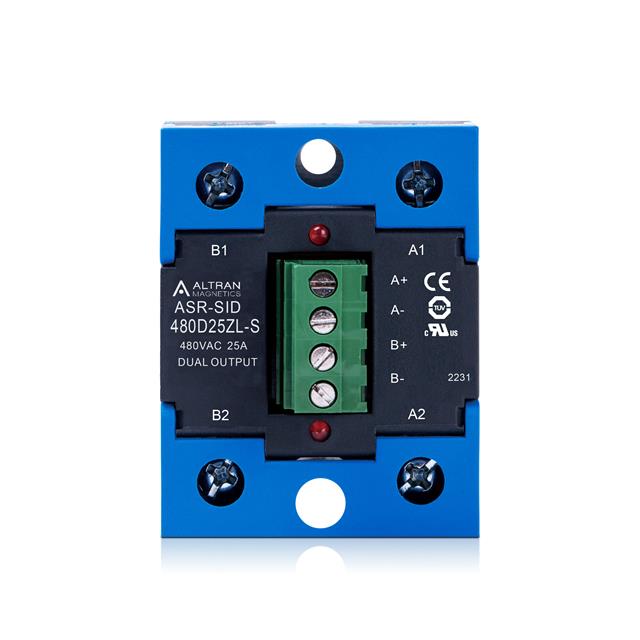

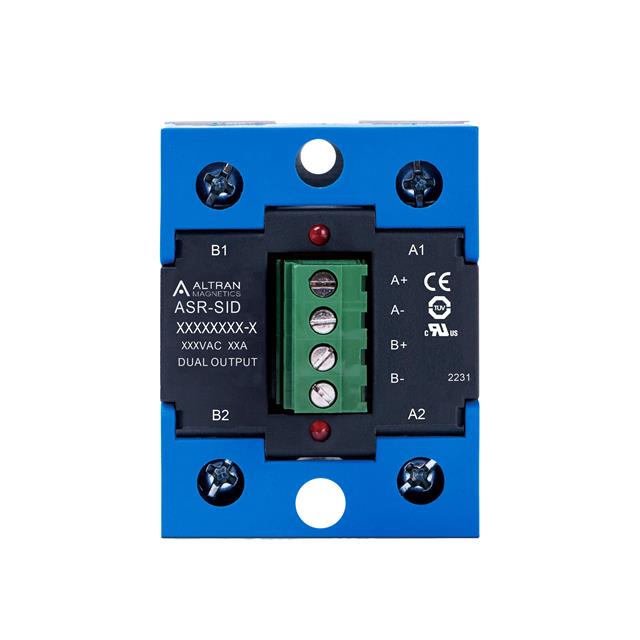

Altran Magnetics, LLC ASR-SID480D25ZL-S	15 V	4 V	Screw Terminal	25 A	Module	AC Zero Cross	Chassis Mount	530 V	24 V	80 °C	-30 ░C	CE cURus TUV	SPST-NO (1 Form A) x 2

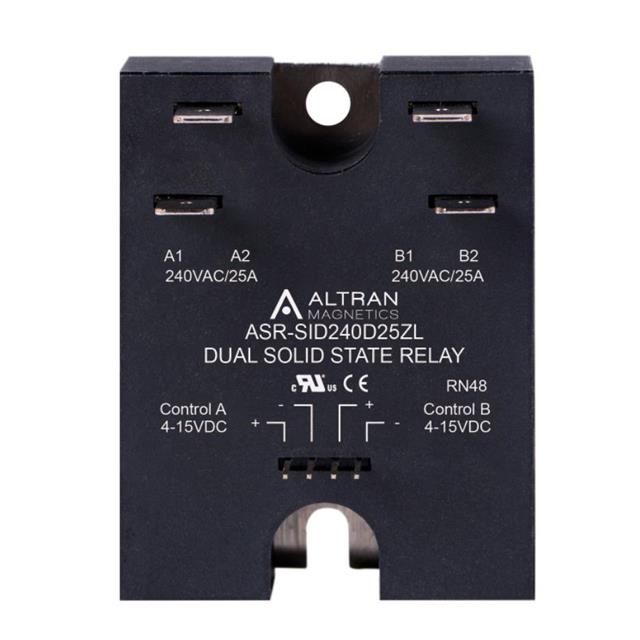

Altran Magnetics, LLC ASR-SID240D25ZL	15 V	4 V	Quick Connect - 0.250" (6.3mm)	25 A	Module	AC Zero Cross	Chassis Mount	280 V	24 V	80 °C	-30 ░C	CE cURus TUV	SPST-NO (1 Form A) x 2

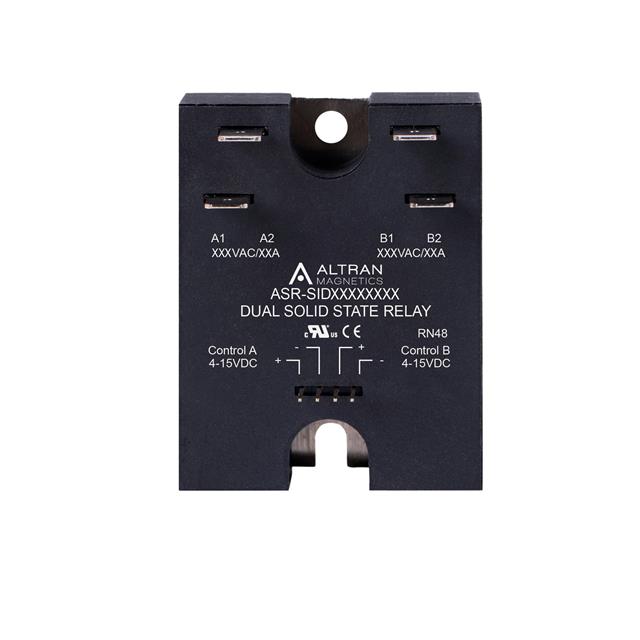

Altran Magnetics, LLC ASR-SID480D40ZL	15 V	4 V	Quick Connect - 0.250" (6.3mm)	40 A	Module	AC Zero Cross	Chassis Mount	530 V	24 V	80 °C	-30 ░C	CE cURus TUV	SPST-NO (1 Form A) x 2
Altran Magnetics, LLC ASR-SID480D25ZL-C	15 V	4 V	Quick Connect - 0.250" (6.3mm)	25 A	Module	AC Zero Cross	Chassis Mount	530 V	24 V	80 °C	-30 ░C	CE cURus TUV	SPST-NO (1 Form A) x 2
Altran Magnetics, LLC ASR-SID240D50ZL-SP	15 V	4 V	Screw Terminal	50 A	Module	AC Zero Cross	Chassis Mount	280 V	24 V	80 °C	-30 ░C	CE cURus TUV	SPST-NO (1 Form A) x 2
Altran Magnetics, LLC ASR-SID480D25ZH	32 VDC	15 V	Quick Connect - 0.250" (6.3mm)	25 A	Module	AC Zero Cross	Chassis Mount	530 V	24 V	80 °C	-30 ░C	CE cURus TUV	SPST-NO (1 Form A) x 2
