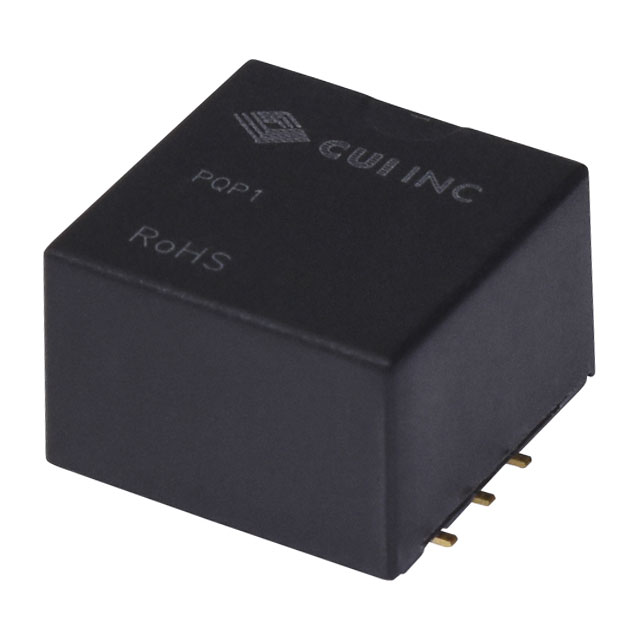

PQP1-D12 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 12V 996MW
| Part | Voltage - Input (Min) [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Standard Number | Number of Outputs | Type | Voltage - Isolation | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Approval Agency | Power (Watts) | Package / Case | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 9 V | 14 mm | 0.55 " | 0.36 in | 9.1 mm | 14 mm | 0.55 in | 55024 55032 | 1 | Isolated Module | 1.5 kV | 18 V | 83 mA | EN | 996 mW | 8-SMD Module 5 Leads | ITE (Commercial) | Surface Mount | 85 °C | -40 C | 12 V | 79 % |
CUI Inc. | 9 V | 14 mm | 0.55 " | 0.36 in | 9.1 mm | 14 mm | 0.55 in | 55024 55032 | 1 | Isolated Module | 1.5 kV | 18 V | 42 mA | EN | 8-SMD Module 5 Leads | ITE (Commercial) | Surface Mount | 85 °C | -40 C | 24 V | 76 % |
