837-015 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 15POS 0.156

Part	Material - Insulation	Termination Rows	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows	Card Type	Number of Positions/Bay/Row	Pitch	Pitch	Contact Type	Contact Finish	Color	Gender	Contact Material	Mounting Type	Number of Positions	Read Out	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness

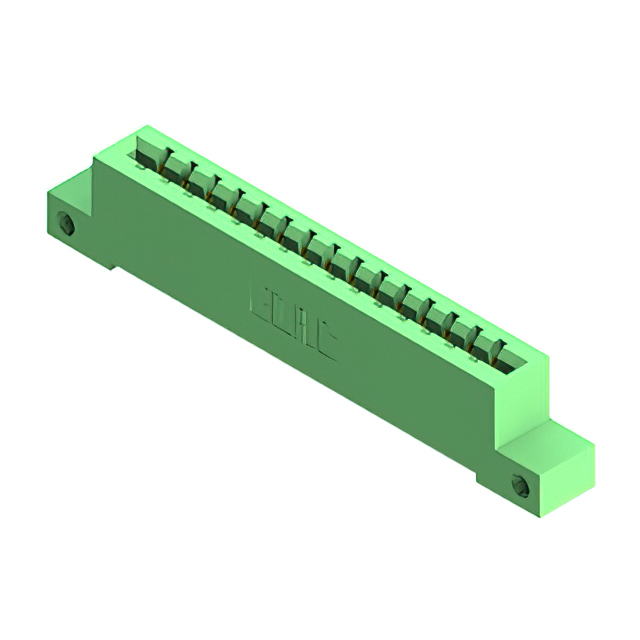

EDAC Inc. 837-015-521-112	Diallyl Phthalate (DAP)	1	Solder	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin

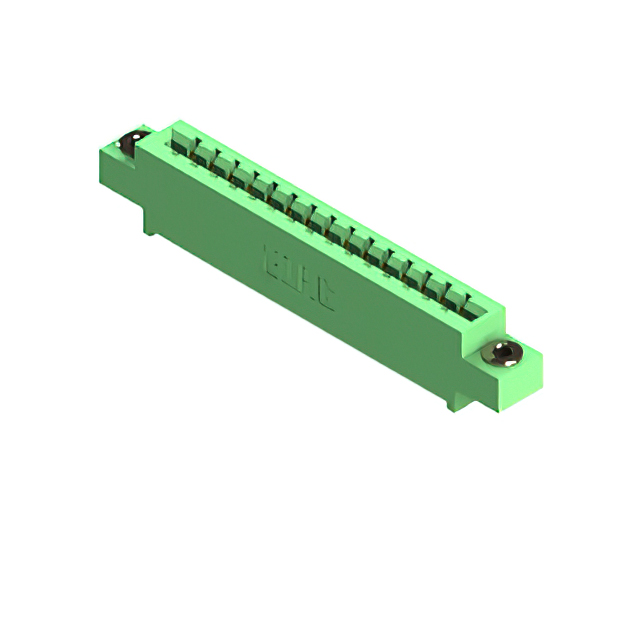

EDAC Inc. 837-015-541-603	Diallyl Phthalate (DAP)	1	Wire Wrap	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin
EDAC Inc. 837-015-540-612	Diallyl Phthalate (DAP)	1	Wire Wrap	Side Mount Opening Unthreaded	0.128 "	3.25 mm	1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin

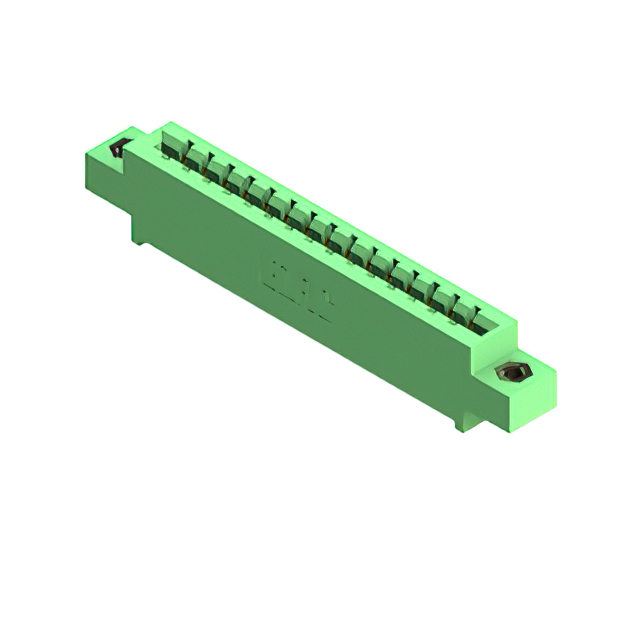

EDAC Inc. 837-015-540-607	Diallyl Phthalate (DAP)	1	Wire Wrap	M3 Threaded Insert Top Mount Opening			1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin
EDAC Inc. 837-015-540-603	Diallyl Phthalate (DAP)	1	Wire Wrap	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin

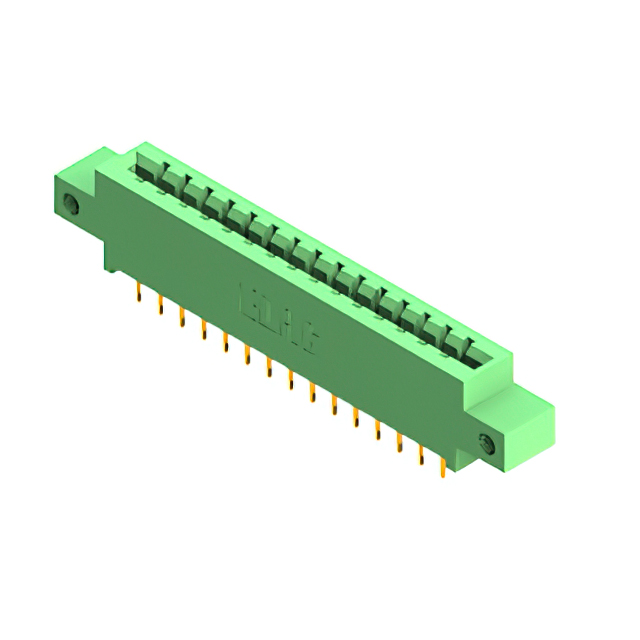

EDAC Inc. 837-015-558-612	Diallyl Phthalate (DAP)	1	Solder	Side Mount Opening Unthreaded	0.128 "	3.25 mm	1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Right Angle Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin

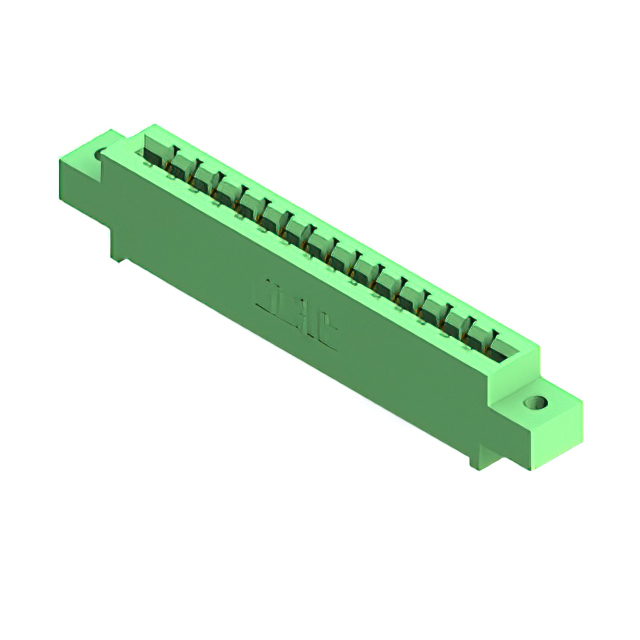

EDAC Inc. 837-015-500-602	Diallyl Phthalate (DAP)	1	Solder Eyelet(s)		0.128 "	3.25 mm	1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin

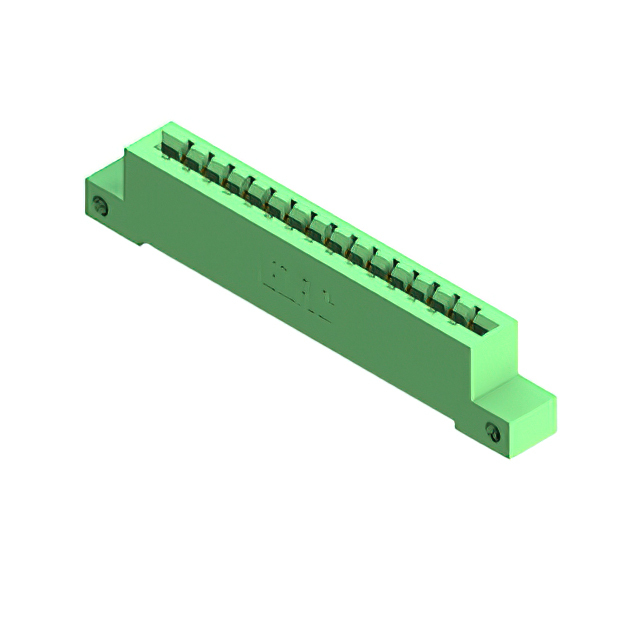

EDAC Inc. 837-015-540-112	Diallyl Phthalate (DAP)	1	Wire Wrap	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin

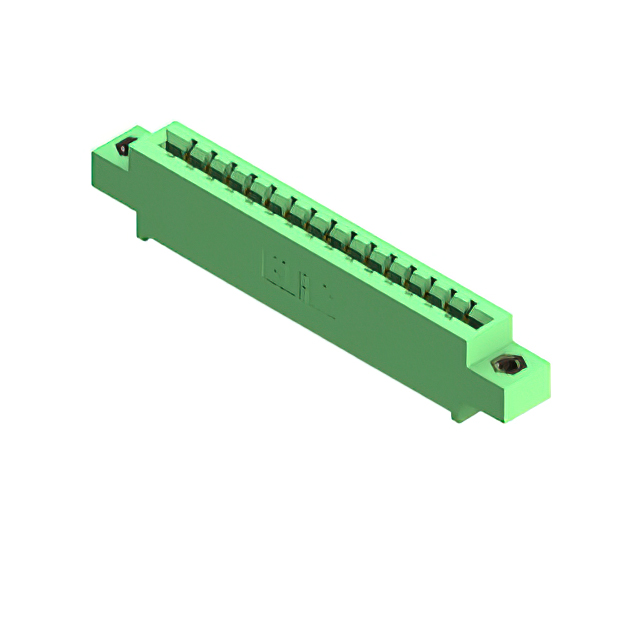

EDAC Inc. 837-015-542-607	Diallyl Phthalate (DAP)	1	Wire Wrap	M3 Threaded Insert Top Mount Opening			1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin

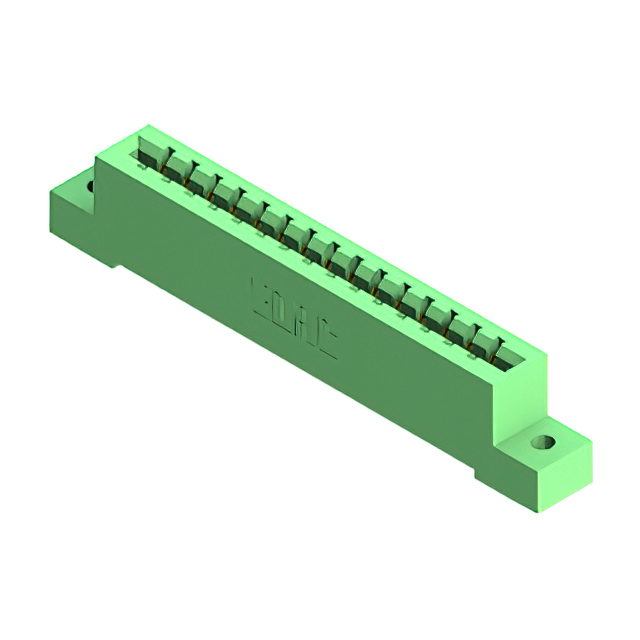

EDAC Inc. 837-015-524-102	Diallyl Phthalate (DAP)	1	Solder	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	1	Non Specified - Single Edge	15	3.96 mm	0.156 in	Cantilever	Gold	Green	Female	Copper Alloy	Through Hole	15	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin
