202656 Series

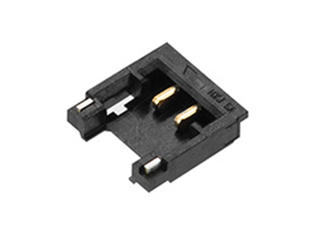

1.20mm Pitch, Pico-EZmate Slim PCB Header, Single Row, Vertical, Friction Lock, 2 Circuits

Manufacturer: Molex

Catalog

1.20mm Pitch, Pico-EZmate Slim PCB Header, Single Row, Vertical, Friction Lock, 2 Circuits

Part	Shrouding	Connector Type	Contact Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Shape	Number of Positions Loaded	Fastening Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Material Flammability Rating	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Mounting Type	Voltage Rating	Contact Finish - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Positions	Style	Insulation Height	Insulation Height	Features	Insulation Material
Molex 2026560021	Shrouded - 3 Wall	Plug	Tab	Black	3.9 µin	0.099 µm	1	Rectangular	All	Friction Lock	Copper Alloy	85 °C	-25 °C	Solder	UL94 V-0	1.5 A	1.06 mm	0.042 in	Surface Mount	50 V	Gold	Gold	1.2 mm	0.047 in	2	Board to Cable/Wire	1.2 mm	0.047 in	Solder Retention	Nylon Polyamide (PA)

1.20mm Pitch, Pico-EZmate Slim PCB Header, Single Row, Vertical, Friction Lock, 2 Circuits
