749813 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

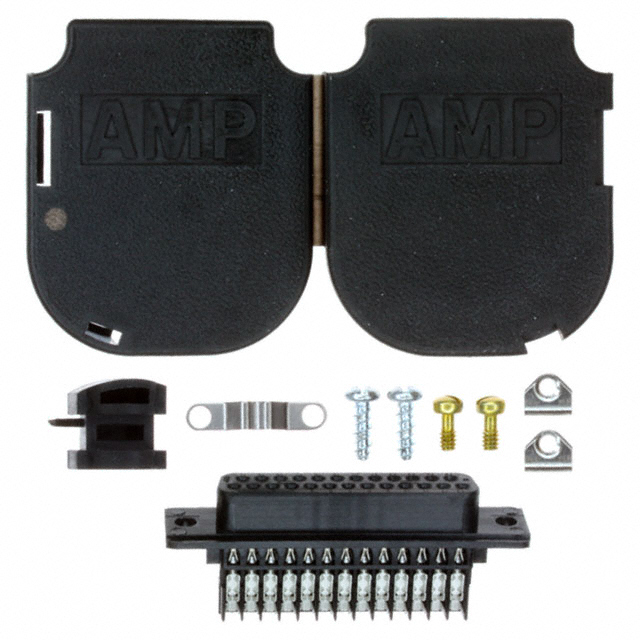

CONN D-SUB RCPT 25POS IDC
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge [Max] | Wire Gauge [Min] | Color | Contact Material | Contact Finish Thickness | Connector Style | Number of Rows [custom] | Contact Finish | Contact Type | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Flange Feature | Mounting Type | Number of Positions | Current Rating (Amps) | Connector Type | Material Flammability Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 250 V | -55 C | 105 ░C | 26 AWG | 22 AWG | Black | Phosphor Bronze | Flash | D-Sub | 2 | Gold | Signal | B DB | 3 | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | 25 | Varies by Wire Gauge | Receptacle Female Sockets | UL94 V-0 | Discrete Wire IDC |
