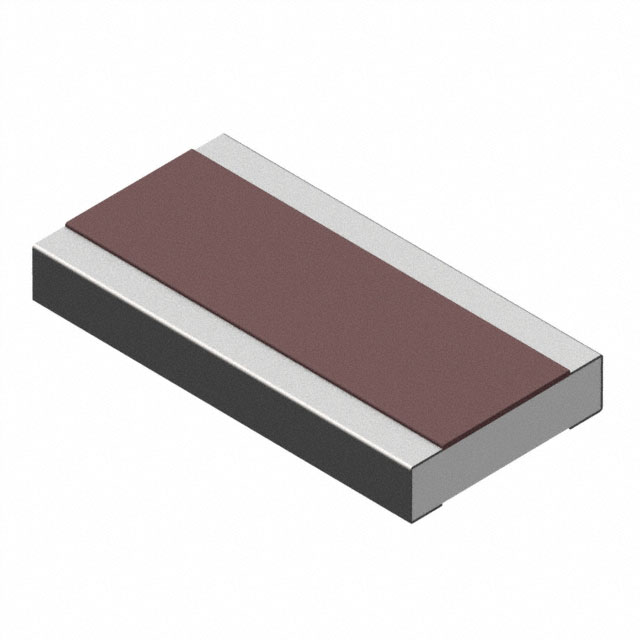

WG732H Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

RES 180 OHM 20% 1.5W 2010

Part	Number of Terminations [custom]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Power (Watts)	Ratings	Temperature Coefficient	Supplier Device Package	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package
KOA Speer Electronics, Inc. WG732HTTE181M	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	20 %	1.5 W	AEC-Q200	100 ppm/°C	2010	180 Ohms	0.098 in	2.5 mm	5 mm	0.197 "
KOA Speer Electronics, Inc. WG732HTTE2R2K	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	10 %	1.5 W	AEC-Q200	100 ppm/°C	2010	2.2 Ohms	0.098 in	2.5 mm	5 mm	0.197 "
KOA Speer Electronics, Inc. WG732HTTE120K	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	10 %	1.5 W	AEC-Q200	100 ppm/°C		12 Ohms	0.098 in	2.5 mm	5 mm	0.197 "	1020
KOA Speer Electronics, Inc. WG732HTTE561K	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	10 %	1.5 W	AEC-Q200	100 ppm/°C	2010	560 Ohms	0.098 in	2.5 mm	5 mm	0.197 "
KOA Speer Electronics, Inc. WG732HTTE121K	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	10 %	1.5 W	AEC-Q200	100 ppm/°C		120 Ohms	0.098 in	2.5 mm	5 mm	0.197 "	1020
KOA Speer Electronics, Inc. WG732HTTE680K	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	10 %	1.5 W	AEC-Q200	100 ppm/°C	2010	68 Ohms	0.098 in	2.5 mm	5 mm	0.197 "
KOA Speer Electronics, Inc. WG732HTTE681M	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	20 %	1.5 W	AEC-Q200	100 ppm/°C	2010	680 Ohms	0.098 in	2.5 mm	5 mm	0.197 "
KOA Speer Electronics, Inc. WG732HTTE391K	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	10 %	1.5 W	AEC-Q200	100 ppm/°C	2010	390 Ohms	0.098 in	2.5 mm	5 mm	0.197 "
KOA Speer Electronics, Inc. WG732HTTE102M	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	20 %	1.5 W	AEC-Q200	100 ppm/°C	2010	1000 Ohms	0.098 in	2.5 mm	5 mm	0.197 "
KOA Speer Electronics, Inc. WG732HTTER56K	2	Automotive AEC-Q200 Pulse Withstanding	155 C	-55 C	Thick Film	1020 Wide 2010 (5025 Metric)	0.7 mm	0.028 "	10 %	1.5 W	AEC-Q200	100 ppm/°C	2010	0.56 Ohms	0.098 in	2.5 mm	5 mm	0.197 "
