WMRAG Series
Manufacturer: Murata Electronics
Beta
⌘K

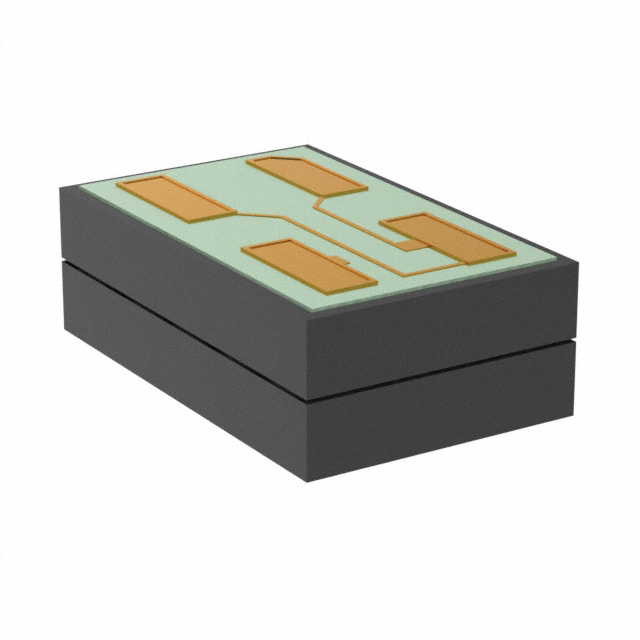

MEMS RESONATOR 0.032768MHZ ±20PPM (TOL) -270/10PPM (STABILITY) 6.9PF/8PF 75000OHM 4-PIN SMD T/R
| Part | Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency | Frequency Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Mounting Type | Load Capacitance | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | kHz Crystal (Tuning Fork) MEMS | 125 °C | -40 C | 0.032768 MHz | 20 ppm | 0.35 mm | 0.014 " | 0.6 mm | 0.037 " | 0.95 mm | 0.024 " | 4-SMD No Lead | Surface Mount | 8 pF | 75 kOhms |
 Murata Electronics | kHz Crystal (Tuning Fork) MEMS | 85 °C | -40 C | 0.032768 MHz | 20 ppm | 0.35 mm | 0.014 " | 0.6 mm | 0.037 " | 0.95 mm | 0.024 " | 4-SMD No Lead | Surface Mount | 8 pF | 75 kOhms |
Murata Electronics | kHz Crystal (Tuning Fork) MEMS | 105 ░C | -40 C | 0.032768 MHz | 20 ppm | 0.35 mm | 0.014 " | 0.6 mm | 0.037 " | 0.95 mm | 0.024 " | 4-SMD No Lead | Surface Mount | 8 pF | 75 kOhms |
Murata Electronics | kHz Crystal (Tuning Fork) MEMS | 85 °C | -30 ░C | 0.032768 MHz | 20 ppm | 0.35 mm | 0.014 " | 0.6 mm | 0.037 " | 0.95 mm | 0.024 " | 4-SMD No Lead | Surface Mount | 8 pF | 75 kOhms |
