487378 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HOUSING RCP 17 POS 2.54MM CRIMP ST CABLE MOUNT BLACK PACKAGE

Part	Current Rating (Amps)	Note	Housing Color	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness [Max]	FFC, FCB Thickness [Min]	Connector Type	Number of Rows	Voltage Rating	Pitch	Pitch	Material Flammability Rating	Flat Flex Type	Number of Positions
TE Connectivity AMP Connectors 1-487378-6	1.5 A	Contacts Not Included	Black	Thermoplastic	105 ░C	-65 ░C	0.13 mm	0.05 mm	Housing for Female Contacts	1	300 VDC	0.1 "	2.54 mm	UL94 V-0	FFC

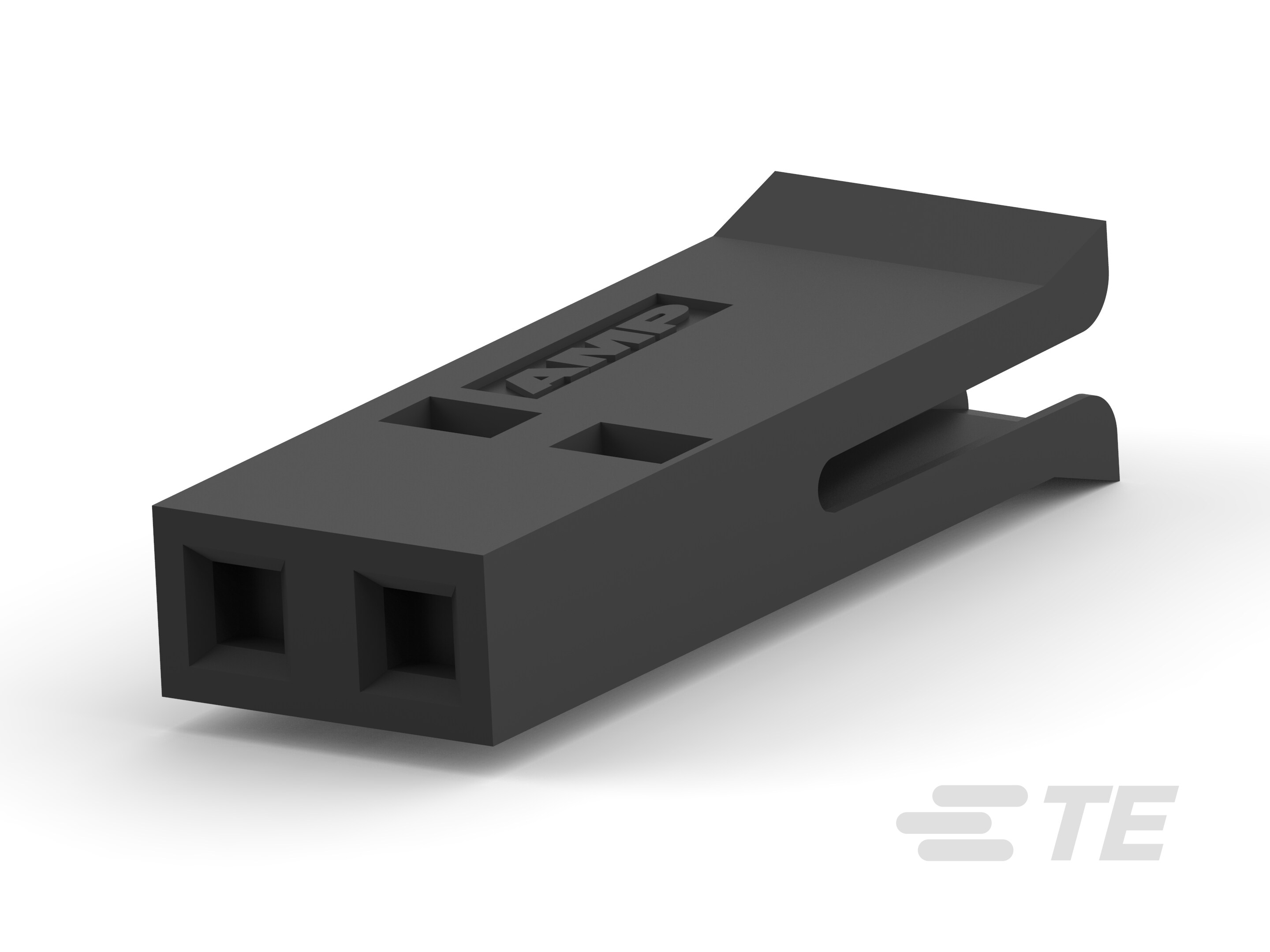

TE Connectivity AMP Connectors 487378-1	1.5 A	Contacts Not Included	Black	Thermoplastic	105 ░C	-65 ░C	0.13 mm	0.05 mm	Housing for Female Contacts	1	300 VDC	0.1 "	2.54 mm	UL94 V-0	FFC	2
TE Connectivity AMP Connectors 487378-2	1.5 A	Contacts Not Included	Black	Thermoplastic	105 ░C	-65 ░C	0.13 mm	0.05 mm	Housing for Female Contacts	1	300 VDC	0.1 "	2.54 mm	UL94 V-0	FFC

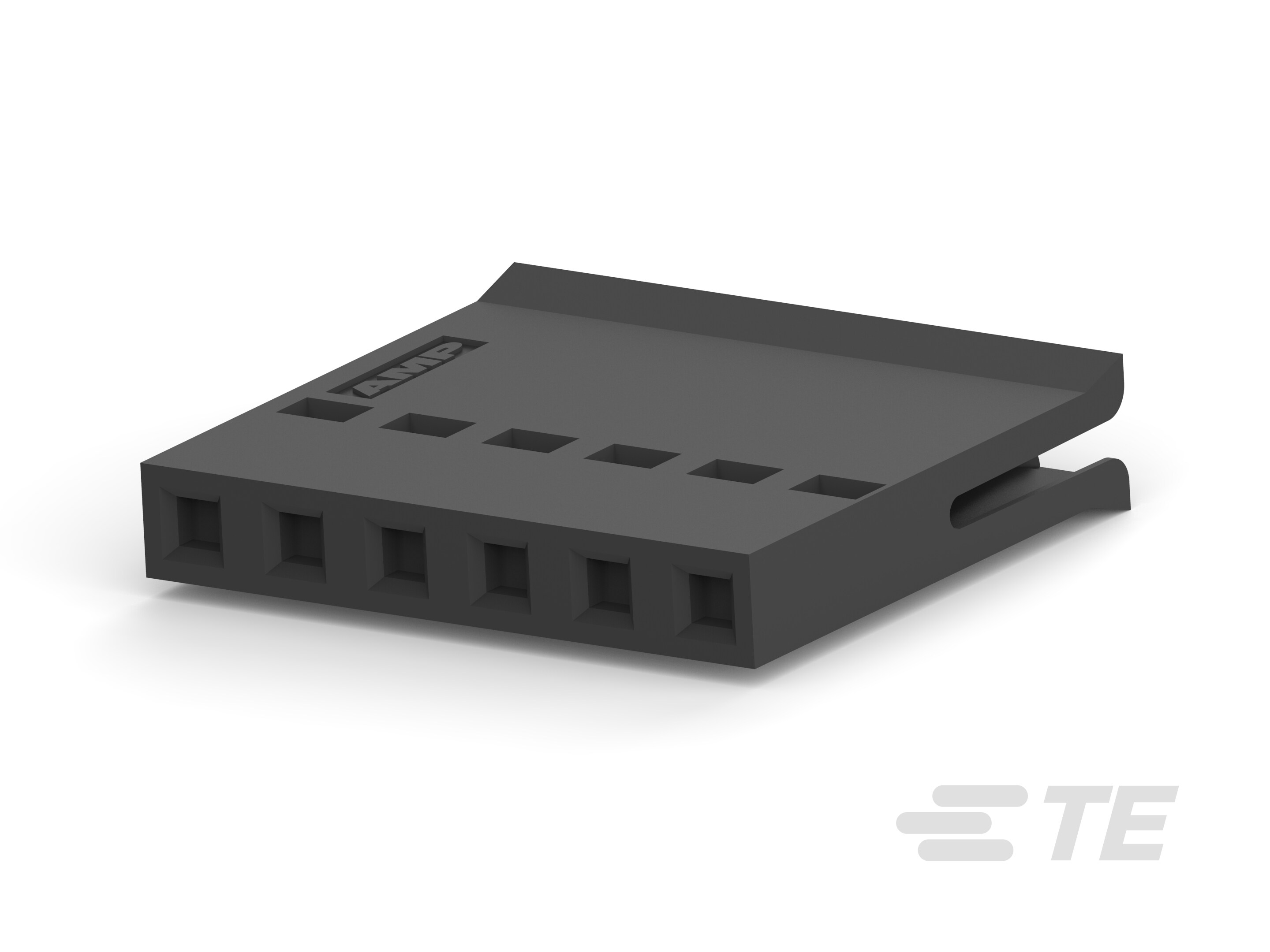

TE Connectivity AMP Connectors 487378-5	1.5 A	Contacts Not Included	Black	Thermoplastic	105 ░C	-65 ░C	0.13 mm	0.05 mm	Housing for Female Contacts	1	300 VDC	0.1 "	2.54 mm	UL94 V-0	FFC	6
TE Connectivity AMP Connectors 1-487378-6				Thermoplastic	105 ░C	-65 ░C	0.13 mm	0.05 mm	Housing for Female Contacts	1	300 VDC	0.1 "	2.54 mm	UL94 V-0	FFC

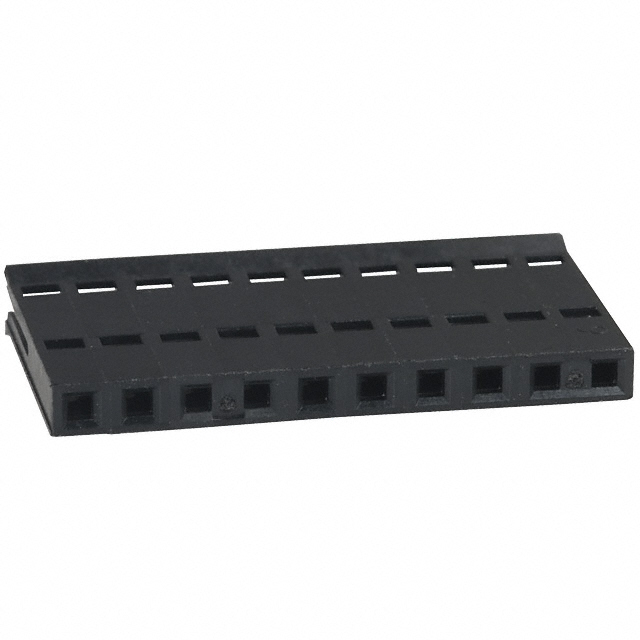

TE Connectivity AMP Connectors 487378-9	1.5 A	Contacts Not Included	Black	Thermoplastic	105 ░C	-65 ░C	0.13 mm	0.05 mm	Housing for Female Contacts	1	300 VDC	0.1 "	2.54 mm	UL94 V-0	FFC	10
TE Connectivity AMP Connectors 1-487378-7	1.5 A	Contacts Not Included	Black	Thermoplastic	105 ░C	-65 ░C	0.13 mm	0.05 mm	Housing for Female Contacts	1	300 VDC	0.1 "	2.54 mm	UL94 V-0	FFC	18
TE Connectivity AMP Connectors 2-487378-3	1.5 A	Contacts Not Included	Black	Thermoplastic	105 ░C	-65 ░C	0.13 mm	0.05 mm	Housing for Female Contacts	1	300 VDC	0.1 "	2.54 mm	UL94 V-0	FFC	24
