F16FB Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

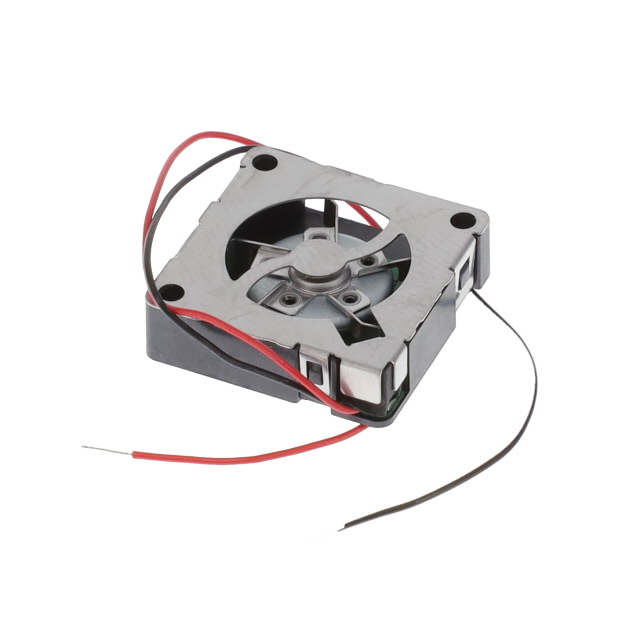

FAN BLOWER 16X4.5MM 5VDC WIRE
| Part | Voltage - Rated | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Power (Watts) | Material - Frame | Material - Blade | Noise | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Weight | Weight | Fan Type | Static Pressure | Static Pressure | Current Rating (Amps) | Air Flow | Air Flow | Termination | Voltage Range [Min] | Voltage Range [Max] | Width [y] | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 5 V | 16 mm | 16 mm | Sleeve | 0.2 W | Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT) | Acrylic Butadiene Styrene (ABS) Polybutylene Terephthalate (PBT) | 3 dB(A) | -10 °C | -10 °C | 60 °C | 60 °C | 1.36 g | 0.003 lb | Blower | 0.022 in H2O | 5.5 Pa | 40 mA | 0.012 m³/min | 0.424 CFM | 2 Wire Leads | 4.5 V | 5.5 V | 4.5 mm | 6000 RPM |
