9366 Series
Manufacturer: Belden Inc.
Beta
⌘K

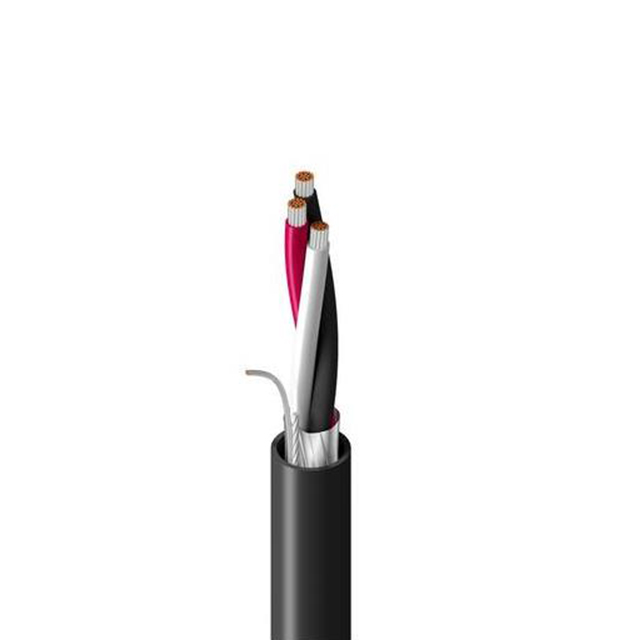

CABLE 3COND 16AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Length | Length | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Features | Ratings | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Instrumentation | 0.042 in | 1.067 mm | 3 | Foil | 19 | 29 | 300 VDC | 304.8 m | 1000 ft | Chrome | 7.7 mm | 0.303 in | 16 AWG | -30 ░C | 105 ░C | Drain Wire Rip Cord | UL Style 2464 | Copper Tinned |
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Instrumentation | 0.042 in | 1.067 mm | 3 | Foil | 19 | 29 | 300 VDC | Chrome | 7.7 mm | 0.303 in | 16 AWG | -30 ░C | 105 ░C | Drain Wire Rip Cord | UL Style 2464 | Copper Tinned | ||
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Instrumentation | 0.042 in | 1.067 mm | 3 | Foil | 19 | 29 | 300 VDC | 152.4 m | 500 ft | Chrome | 7.7 mm | 0.303 in | 16 AWG | -30 ░C | 105 ░C | Drain Wire Rip Cord | UL Style 2464 | Copper Tinned |
