1586586 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 24POS 4.2MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Shape	Contact Type	Number of Positions Loaded	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Material	Fastening Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Insulation Material	Features	Insulation Color	Mounting Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Shrouding	Pitch - Mating	Pitch - Mating	Style	Voltage Rating	Current Rating (Amps)

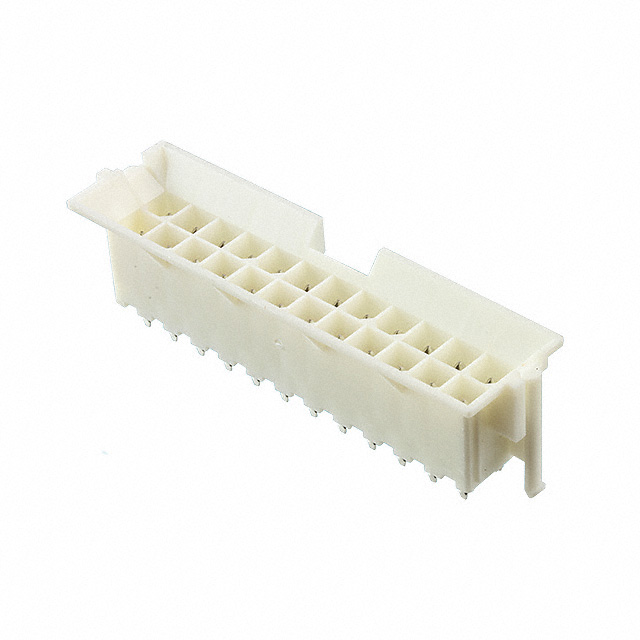

TE Connectivity AMP Connectors 2-1586586-4	General Purpose Industrial Lighting	39.4 çin	1 çm	UL94 V-2	Square	Male Pin	All	Header	0.165 in	4.2 mm	Tin	Brass Alloy	Latch Holder	14.1 mm	0.555 in	-40 C	105 ░C	Solder	24	Nylon Polyamide (PA)	Board Lock	Natural	Through Hole	39.4 µin	1 µm	0.138 in	3.5 mm	2	Shrouded - 4 Wall	0.165 in	4.2 mm	Board to Cable/Wire	600 VAC	9 A

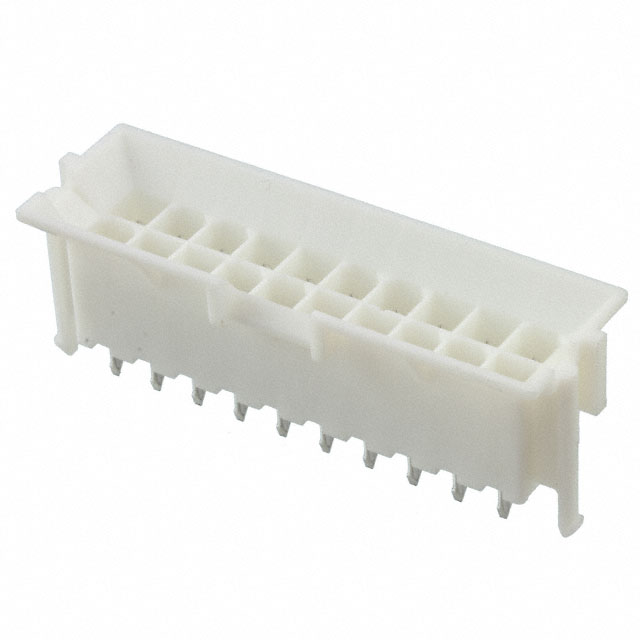

TE Connectivity AMP Connectors 2-1586586-0	General Purpose Industrial Lighting	39.4 çin	1 çm	UL94 V-2	Square	Male Pin	All	Header	0.165 in	4.2 mm	Tin	Brass Alloy	Latch Holder	14.1 mm	0.555 in	-40 C	105 ░C	Solder	20	Nylon Polyamide (PA)	Board Lock	Natural	Through Hole	39.4 µin	1 µm	0.138 in	3.5 mm	2	Shrouded - 4 Wall	0.165 in	4.2 mm	Board to Cable/Wire	600 VAC	9 A
TE Connectivity AMP Connectors 1586586-2	General Purpose Industrial Lighting	39.4 çin	1 çm	UL94 V-2	Square	Male Pin	All	Header	0.165 in	4.2 mm	Tin	Brass Alloy	Latch Holder	14.1 mm	0.555 in	-40 C	105 ░C	Solder	2	Nylon Polyamide (PA)	Board Lock	Natural	Through Hole	39.4 µin	1 µm	0.138 in	3.5 mm	2	Shrouded - 4 Wall			Board to Cable/Wire	600 VAC	9 A
TE Connectivity AMP Connectors 1-1586586-8	General Purpose Industrial Lighting	39.4 çin	1 çm	UL94 V-2	Square	Male Pin	All	Header	0.165 in	4.2 mm	Tin	Brass Alloy	Latch Holder	14.1 mm	0.555 in	-40 C	105 ░C	Solder	18	Nylon Polyamide (PA)	Board Lock	Natural	Through Hole	39.4 µin	1 µm	0.138 in	3.5 mm	2	Shrouded - 4 Wall	0.165 in	4.2 mm	Board to Cable/Wire	600 VAC	9 A
