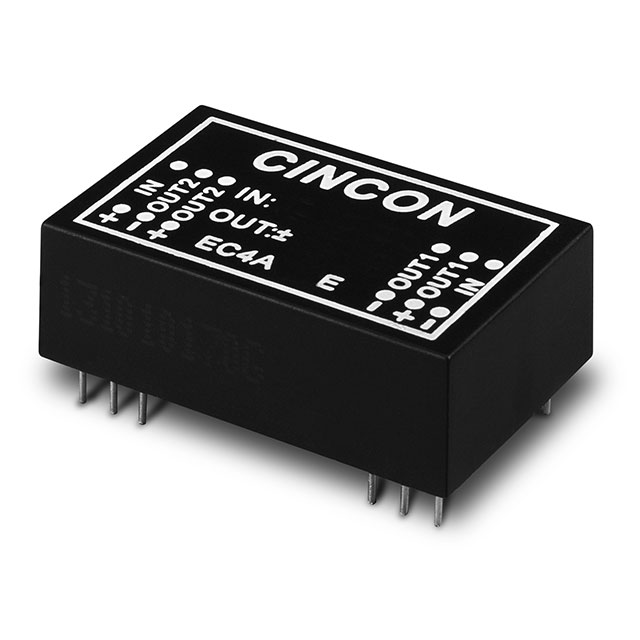

ec4a-e Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 5 TO 6 WATT, 2:1 INPUT RANGE, 18-36VDC INPUT, 12VDC OUTPUT, BLACK COATED COPPER WITH NON-CONDUCTIVE BASE, 500KVDC MIN. ISOLATION, DIP-24
| Part | Voltage - Output 1 | Standard Number | Mounting Type | Approval Agency | Voltage - Input (Max) [Max] | Power (Watts) | Applications | Current - Output (Max) [Max] | Features | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Package / Case | Number of Outputs | Voltage - Output 2 | Current - Output (Max) | Size / Dimension [y] | Size / Dimension [z] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 12 V | 60950-1 | Through Hole | CE cURus | 36 V | 6 W | ITE (Commercial) | 500 mA | SCP UVLO | 18 V | -40 °C | 100 °C | 500 V | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 86 % | 24-DIP Module 14 Leads | 1 | |||||
 Cincon Electronics Co. LTD | 5 V | 60950-1 | Through Hole | CE cURus | 36 V | 5 W | ITE (Commercial) | SCP UVLO | 18 V | -40 °C | 100 °C | 1.5 kV | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 24-DIP Module 14 Leads | 2 | -5 V | 500 mA | |||||
Cincon Electronics Co. LTD | 15 V | 60950-1 | Through Hole | CE cURus | 72 V | 6 W | ITE (Commercial) | SCP UVLO | 36 V | -40 °C | 100 °C | 500 V | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 87 % | 24-DIP Module 14 Leads | 2 | -15 V | |||||
Cincon Electronics Co. LTD | 5 V | 60950-1 | Through Hole | CE cURus | 36 V | 5 W | ITE (Commercial) | SCP UVLO | 18 V | -40 °C | 100 °C | 500 V | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 24-DIP Module 14 Leads | 2 | -5 V | 500 mA | |||||
 Cincon Electronics Co. LTD | 15 V | 60950-1 62368-1 | Surface Mount | CE cURus | 36 V | 6 W | ITE (Commercial) | 400 mA | Adjustable Output Remote On/Off | 18 V | -40 °C | 85 °C | 500 V | Isolated Module | 0.8 " | 0.45 in | 31.8 mm | 1.25 in | 87 % | 24-SMD Module 18 Leads | 1 | 20.3 mm | 11.4 mm | Active High Enable | ||||
Cincon Electronics Co. LTD | 5 V | 60950-1 | Through Hole | CE cURus | 18 V | 5 W | ITE (Commercial) | SCP UVLO | 9 V | -40 °C | 100 °C | 1.5 kV | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 81 % | 24-DIP Module 14 Leads | 2 | -5 V | 500 mA | ||||
Cincon Electronics Co. LTD | 5 V | 60950-1 62368-1 | Surface Mount | CE cURus | 18 V | 5 W | ITE (Commercial) | 1 A | Adjustable Output Remote On/Off | 9 V | -40 °C | 85 °C | 3000 V | Isolated Module | 0.8 " | 0.45 in | 31.8 mm | 1.25 in | 81 % | 24-SMD Module 18 Leads | 1 | 20.3 mm | 11.4 mm | Active High Enable | ||||
Cincon Electronics Co. LTD | 12 V | 60950-1 | Through Hole | CE cURus | 72 V | 6 W | ITE (Commercial) | SCP UVLO | 36 V | -40 °C | 100 °C | 1.5 kV | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 87 % | 24-DIP Module 14 Leads | 2 | -12 V | 250 mA | ||||
Cincon Electronics Co. LTD | 5 V | 60950-1 | Through Hole | CE cURus | 72 V | 5 W | ITE (Commercial) | 1 A | SCP UVLO | 36 V | -40 °C | 100 °C | 1.5 kV | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 83 % | 24-DIP Module 14 Leads | 1 | |||||
Cincon Electronics Co. LTD | 12 V | 60950-1 62368-1 | Surface Mount | CE cURus | 36 V | 6 W | ITE (Commercial) | Adjustable Output Remote On/Off | 18 V | -40 °C | 85 °C | 1.5 kV | Isolated Module | 0.8 " | 0.45 in | 31.8 mm | 1.25 in | 86 % | 24-SMD Module 18 Leads | 2 | -12 V | 250 mA | 20.3 mm | 11.4 mm | Active High Enable |
